M12 (14mm) x 58mm Wood Construction Washer - DIN 1052 | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.02 | £2.42 |
| 100 - 499 | £1.83 | £2.20 |
| 500 - 999 | £1.47 | £1.76 |
| 1000 - 9999 | £1.32 | £1.58 |
| 10000 + | £1.23 | £1.48 |
£2.42 / each
.png)
Product Specification
| Size | M12 |
| Internal Diameter | 14.0mm |
| Outside Diameter | 58.0mm |
| Thickness | 6.00mm |
| Standard | DIN 1052 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

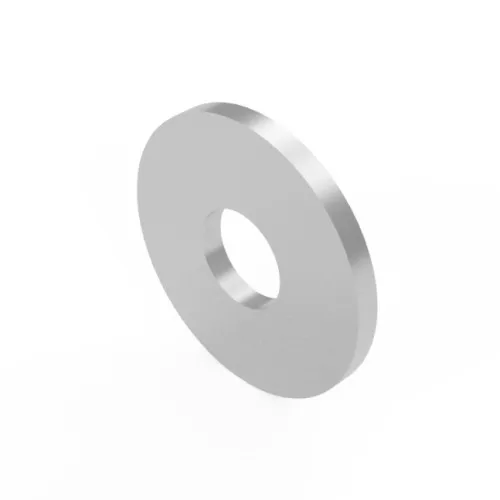

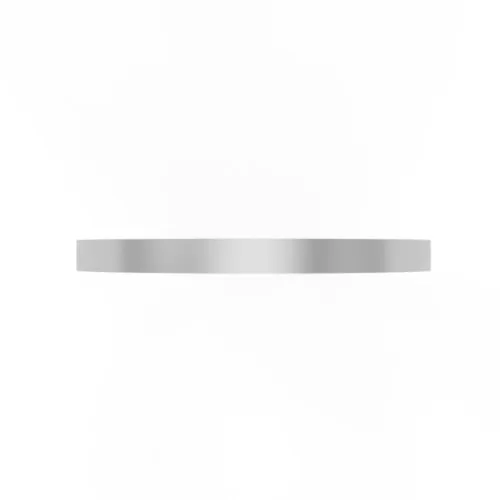

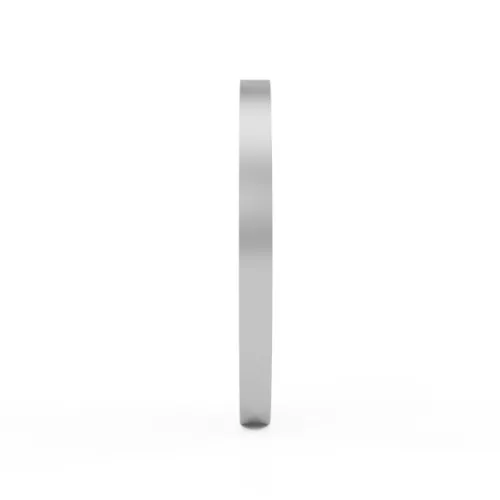

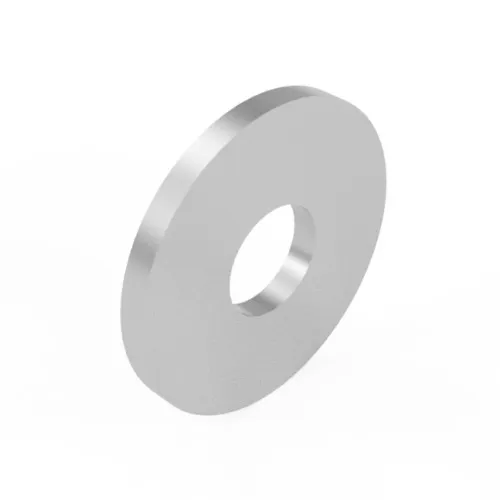

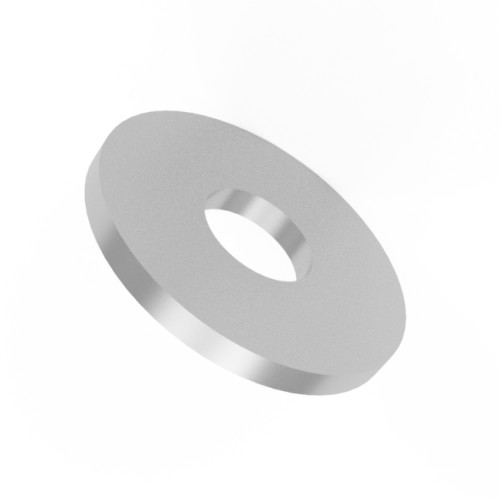

M12 Wood Construction Washer - 14mm ID x 58mm OD | DIN 1052 | A4 Stainless Steel
Providing reinforcement for boat building and high-moisture timber assemblies, this stainless steel construction washer combines a M12 fastener reference with a 58.0mm outside diameter. The wider bearing face supports demanding timber joints by distributing force more evenly across the surrounding wood. The A4 marine-grade material is particularly suited to coastal, marine and high-moisture timber applications where enhanced corrosion resistance is required.
What Are Wood Construction Washers?
DIN 440R and DIN 1052 Wood Construction Washers are intended for structural timber fastening where load spreading is important. Their broad round profile helps prevent concentrated clamping force from damaging the timber around the fixing point.
Common Applications
- Retaining Structures: Helps spread clamping force in heavy timber walls, sleepers and structural support projects.
- Beam and Post Connections: Reduces local crushing around bolted joints in timber beams, posts and support structures.
- Timber Frame Construction: Spreads bolt or coach screw load across beams, posts and joists to support stronger structural joints.
- Fencing and Gates: Provides additional bearing area around bolts used in timber posts, rails and gate assemblies.
M12 DIN 1052 Wood Construction Washer Dimensions
- Size: M12
- Internal Diameter: 14.0mm
- Outside Diameter: 58.0mm
- Thickness: 6.00mm
- Material: A4 Stainless Steel
- Standard: DIN 1052
Key Benefits
- 6.00mm thickness provides the specified washer section for this size.
- DIN 1052 manufacture provides the recognised dimensional standard for this washer type.
- Suitable for use beneath compatible bolt heads or nuts in timber framing and structural joinery.
- M12 size provides the stated fastener reference for the washer.
See the wider Wood Construction Washers category for other DIN 440R and DIN 1052 dimensions. For sizing support, speak with our team on 01233 713581.
