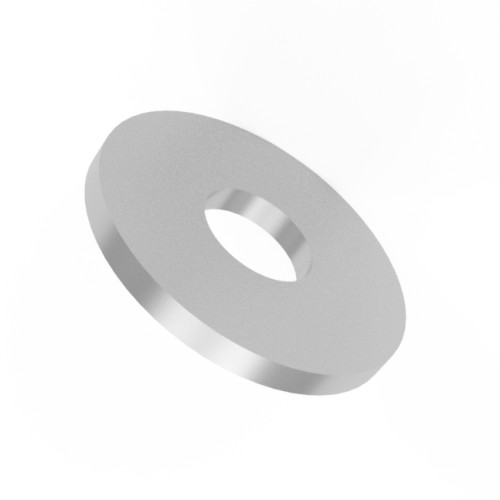

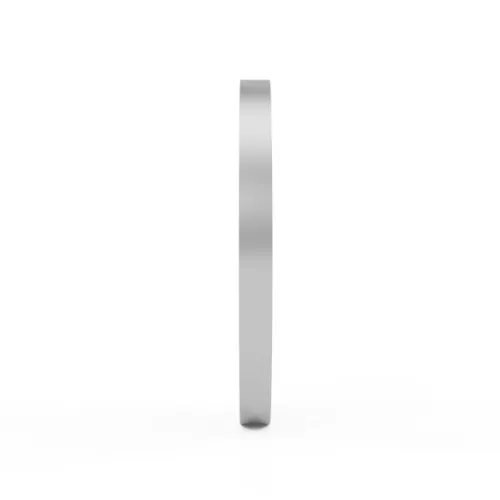

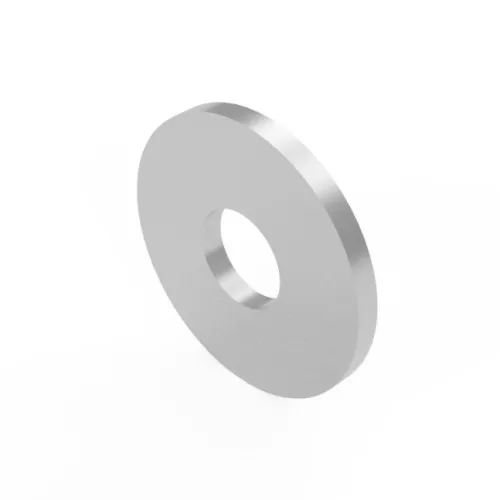

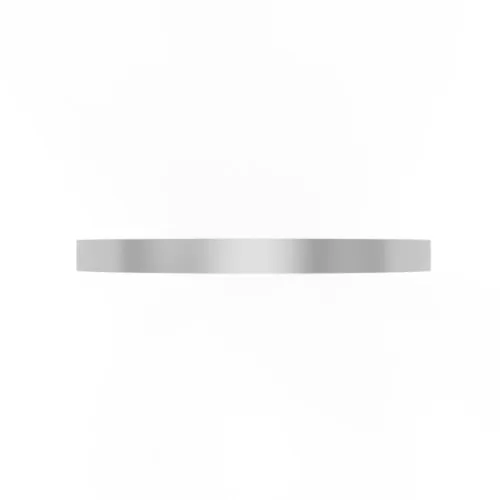

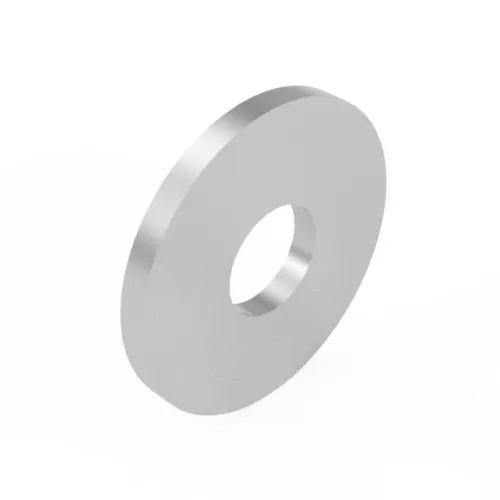

M22 (25mm) x 92mm Wood Construction Washer - DIN 1052 | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £5.98 | £7.18 |
| 100 - 499 | £5.44 | £6.53 |
| 500 - 999 | £4.35 | £5.22 |
| 1000 - 9999 | £3.92 | £4.70 |
| 10000 + | £3.66 | £4.39 |
£7.18 / each
.png)
Product Specification
| Size | M22 |
| Internal Diameter | 25.0mm |
| Outside Diameter | 92.0mm |
| Thickness | 8.00mm |
| Standard | DIN 1052 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M22 Wood Construction Washer - 25mm ID x 92mm OD | DIN 1052 | A2 Stainless Steel
Made for agricultural buildings and timber structures, this heavy duty timber washer fits beneath compatible bolts, coach screws or nuts to help protect the timber surface around the connection. The A2 Stainless Steel construction provides corrosion resistance while the large washer diameter supports stable load distribution. The A2 Stainless Steel material is well suited to general construction and outdoor timber projects where good corrosion resistance is required.
What Are Wood Construction Washers?
Large Flat Washers for timber are used where softer materials need extra support around a bolted connection. By increasing the contact area around the fastener, the washer helps protect the timber surface and maintain a more stable structural joint.
Common Applications
- Beam and Post Connections: Reduces local crushing around bolted joints in timber beams, posts and support structures.
- General Construction: Provides a broad bearing surface around compatible timber fasteners in structural and outdoor construction.
- Fencing and Gates: Provides additional bearing area around bolts used in timber posts, rails and gate assemblies.
- Agricultural Buildings: Provides reinforced washer support for timber frames, sheds and external structural assemblies.

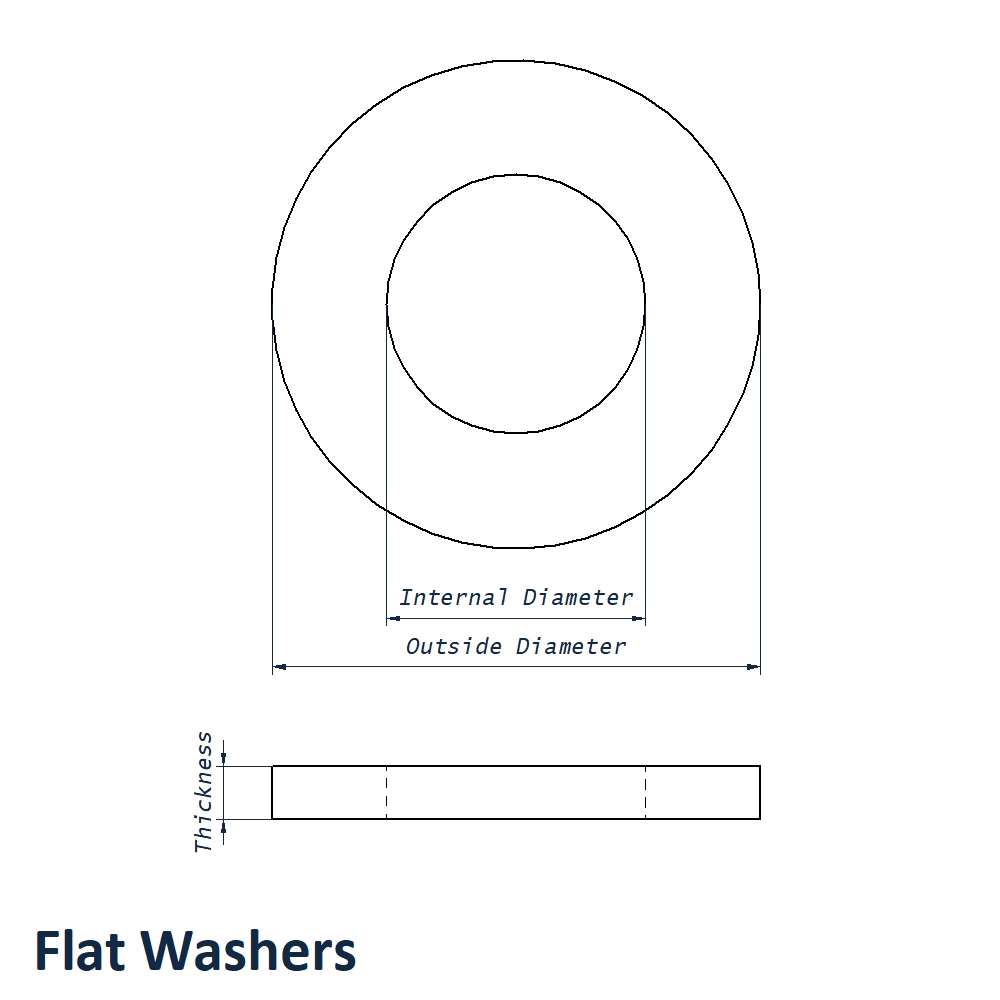

M22 DIN 1052 Wood Construction Washer Dimensions
- Size: M22
- Internal Diameter: 25.0mm
- Outside Diameter: 92.0mm
- Thickness: 8.00mm
- Material: A2 Stainless Steel
- Standard: DIN 1052
Key Benefits
- 25.0mm internal diameter provides clearance around the compatible bolt or coach screw.
- 8.00mm thickness provides the specified washer section for this size.
- Large bearing surface helps reduce local crushing and indentation in softer timber.
- Suitable for use beneath compatible bolt heads or nuts in timber framing and structural joinery.
Compare more sizes in our Wood Construction Washer range for different timber fasteners and structural applications. If you are unsure which size or grade you need, contact our team on 01233 713581.
