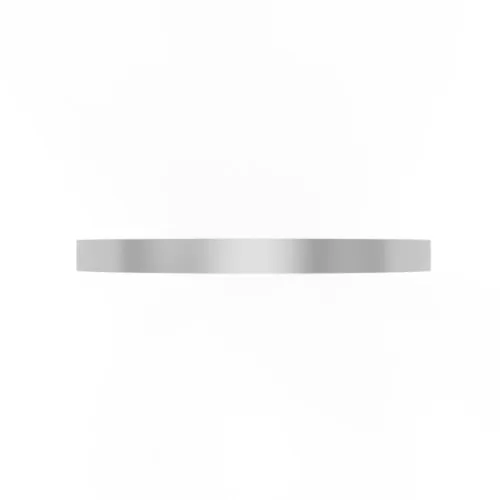

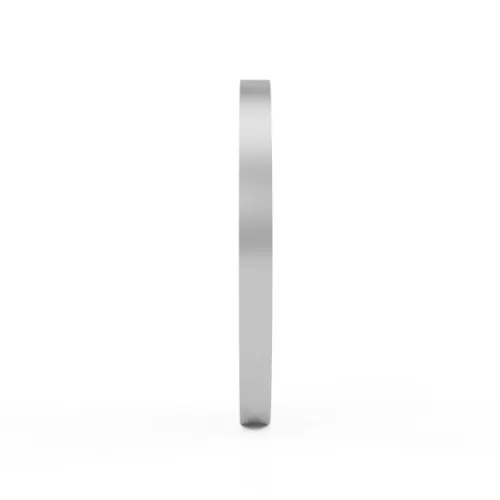

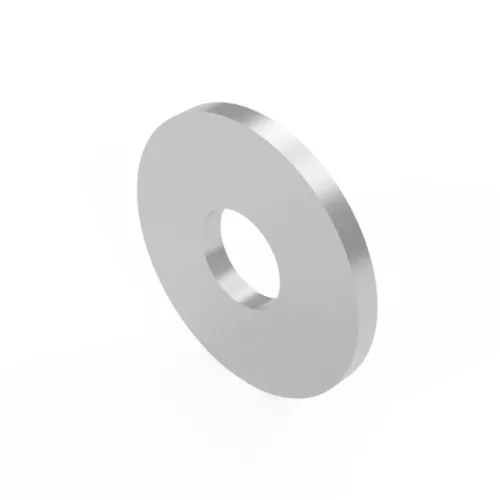

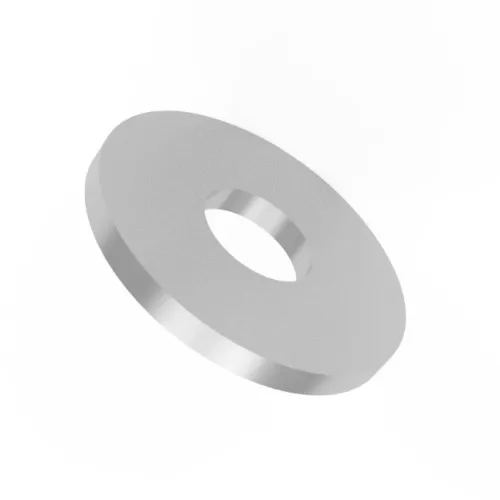

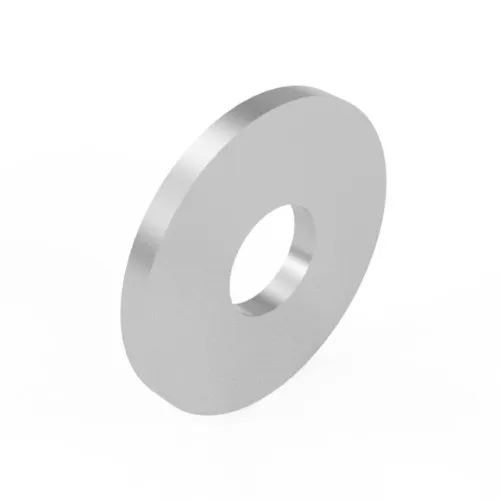

M22 (25mm) x 92mm Wood Construction Washer - DIN 1052 | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £9.51 | £11.41 |
| 100 - 499 | £8.64 | £10.37 |
| 500 - 999 | £6.92 | £8.30 |
| 1000 - 9999 | £6.22 | £7.47 |
| 10000 + | £5.81 | £6.97 |
£11.41 / each
.png)
Product Specification
| Size | M22 |
| Internal Diameter | 25.0mm |
| Outside Diameter | 92.0mm |
| Thickness | 8.00mm |
| Standard | DIN 1052 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M22 Wood Construction Washer - 25mm ID x 92mm OD | DIN 1052 | A4 Stainless Steel
For outdoor timber projects exposed to salt or harsh weather, this heavy duty timber washer supports stronger timber connections by spreading the applied load over a wider area. Its 92.0mm outside diameter provides substantial coverage around the M22 fastening point while the 8.00mm thickness gives the washer a robust section. The A4 marine-grade material is particularly suited to coastal, marine and high-moisture timber applications where enhanced corrosion resistance is required.
What Are Wood Construction Washers?
Timber Construction Washers provide a larger bearing surface than standard flat washers. They are commonly positioned beneath bolt heads or nuts in timber framing so the fixing force is distributed more evenly across beams, posts, joists and other wooden components.
Common Applications
- Beam and Post Connections: Reduces local crushing around bolted joints in timber beams, posts and support structures.
- Boat Building: A4 Stainless Steel variants provide load spreading around timber fasteners used in suitable marine assemblies.
- Fencing and Gates: Provides additional bearing area around bolts used in timber posts, rails and gate assemblies.
- Agricultural Buildings: Provides reinforced washer support for timber frames, sheds and external structural assemblies.

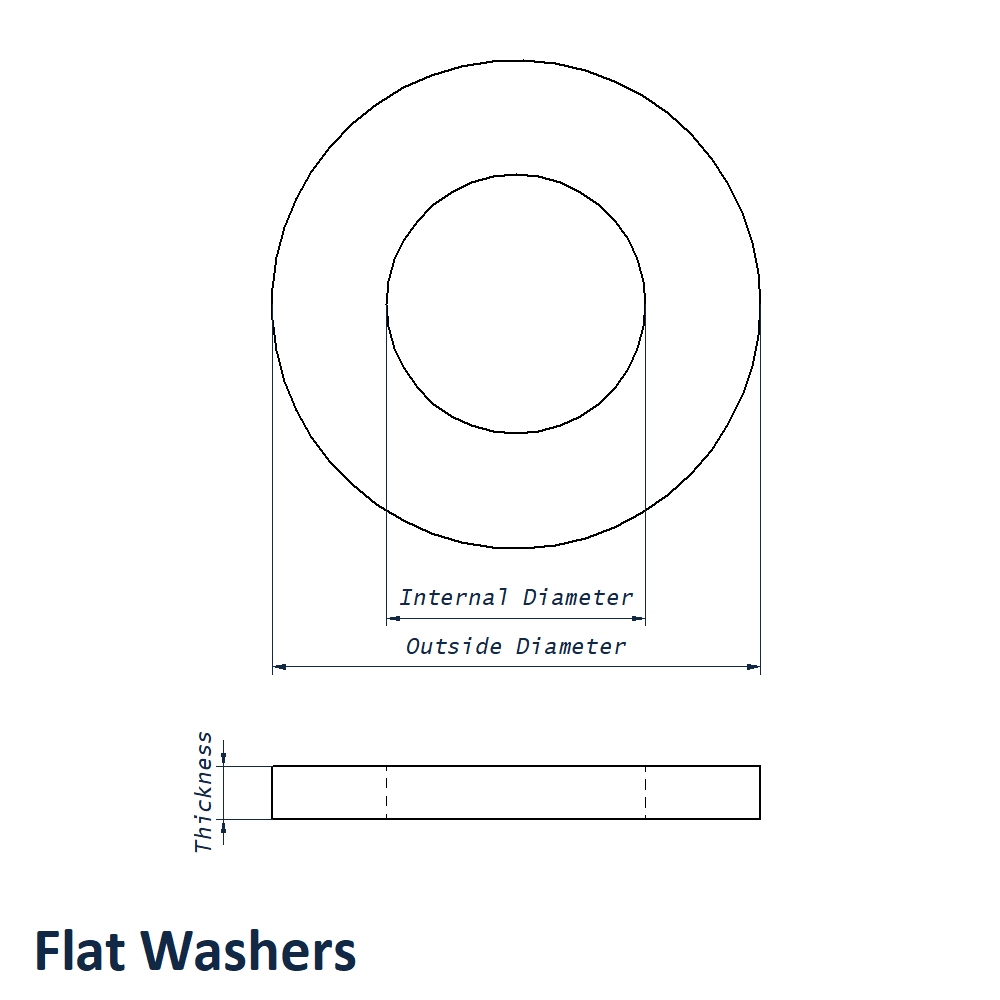

M22 DIN 1052 Wood Construction Washer Dimensions
- Size: M22
- Internal Diameter: 25.0mm
- Outside Diameter: 92.0mm
- Thickness: 8.00mm
- Material: A4 Stainless Steel
- Standard: DIN 1052
Key Benefits
- Large bearing surface helps reduce local crushing and indentation in softer timber.
- Suitable for use beneath compatible bolt heads or nuts in timber framing and structural joinery.
- 25.0mm internal diameter provides clearance around the compatible bolt or coach screw.
- 8.00mm thickness provides the specified washer section for this size.
Browse the complete Timber Construction Washers range for alternative internal diameters, outside diameters and stainless steel grades. We can help you choose the right option on 01233 713581.
