M6 x 40mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.81 | £0.97 |
| 10 - 24 | £0.65 | £0.78 |
| 25 - 49 | £0.48 | £0.58 |
| 50 - 99 | £0.41 | £0.49 |
| 100 - 499 | £0.37 | £0.44 |
| 500 - 999 | £0.33 | £0.39 |
| 1000 + | £0.24 | £0.29 |
Product Specification
| Thread Size | M6 |
| Thread Length | 40mm |
| Pitch | 1mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 6.6mm |
| Flange Diameter | 14.2mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 40mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
The M6 x 40mm A2-70 Stainless Steel flanged hex head bolt is built for production lines where a standard hex bolt would need extra load spreading. Its 40mm thread length, 1mm pitch and 6.6mm head height make it easy to match with existing DIN 6921 fastener specifications.
A flanged head gives the fixing a larger contact area and can reduce assembly time where a loose washer is not required by the design. With 1mm pitch and 10mm across flats, this bolt is suited to buyers who need clear technical matching for procurement or maintenance work.
Common Applications
- Production Lines: fastening brackets and change parts on production line equipment.
- Assembly Lines: keeping fastening work efficient with standard hex tooling.
- Bracket Fixing: supports repeatable assembly in maintenance and manufacturing environments.
- Equipment Repairs: matching existing flange bolt dimensions during replacement.

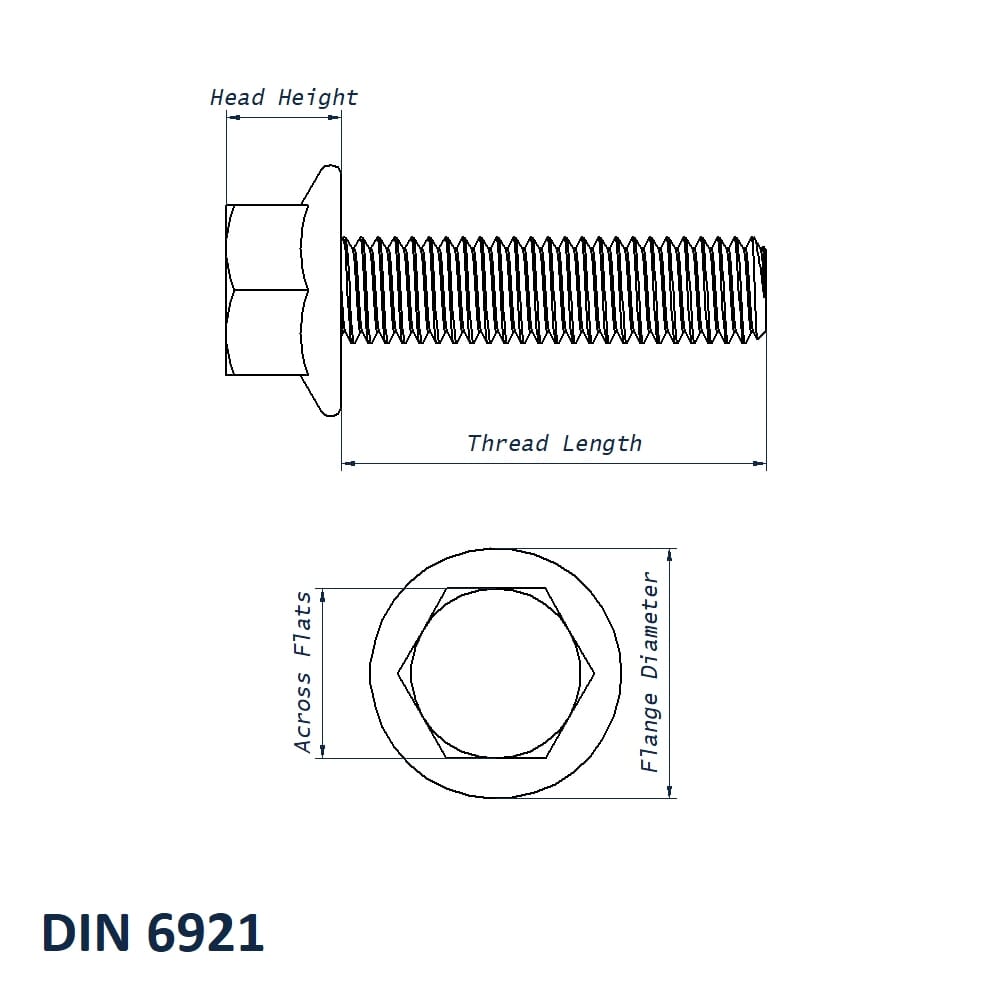

M6 x 40mm Flanged Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 40mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Use the head height and flange diameter together when checking clearance below guards, covers or equipment housings. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
