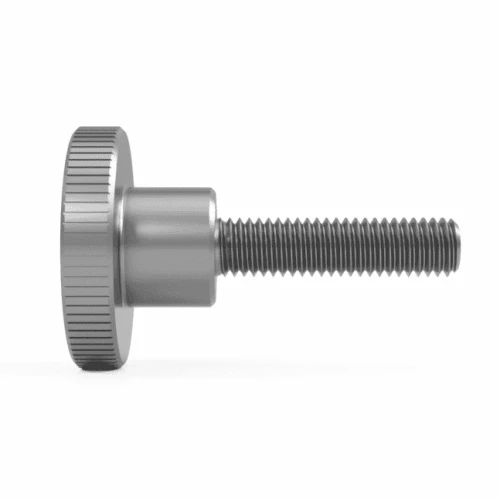

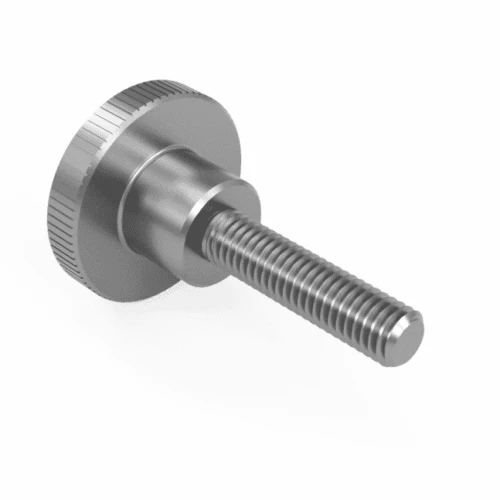

M6 x 12mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M6-12-A1
View All Specifications
M6 x 12mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 12mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 12mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 12mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 12mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 12mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £5.22 £6.26
10 - 24 £3.48 £4.17
25 - 49 £2.61 £3.13
50 - 99 £2.43 £2.92
100 + £2.17 £2.61

£6.26 / each


Up to 9 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 2,669 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 10,707 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
10,707 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Thread Length 12mm
Pitch 1.00mm
Head Diameter 24.42mm
Head Height 15.0mm
Knurled Height 5.0mm
Shank Diameter 12.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 12mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

Suitable for repeated-access fastening points, this M6 x 12mm knurled thumb screw combines a M6 metric thread with a large knurled head for quick manual adjustment. Manufactured to DIN 464 from A1 Stainless Steel, it is useful where a fastening point needs to be opened, repositioned or clamped repeatedly. This size is also relevant when comparing DIN 464 thumb screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

DIN 464 Knurled Thumb Screws are hand-operated metric fasteners with a large round head and textured knurled edge. The knurl improves finger grip so the screw can be tightened or loosened without tools which is useful on parts that need regular access, clamping or adjustment.

Common Applications

  • Jigs and Fixtures: Provides quick manual clamping or repositioning on workshop tooling and production fixtures.
  • Adjustment Points: Provides a hand-operated threaded fastener for setting positions, stops or clearances.
  • Workholding: Can be used for manual clamping in suitable fixtures where fast changes are required.
  • Levelling and Positioning: Can be used in suitable threaded mechanisms where hand adjustment of position or pressure is required.

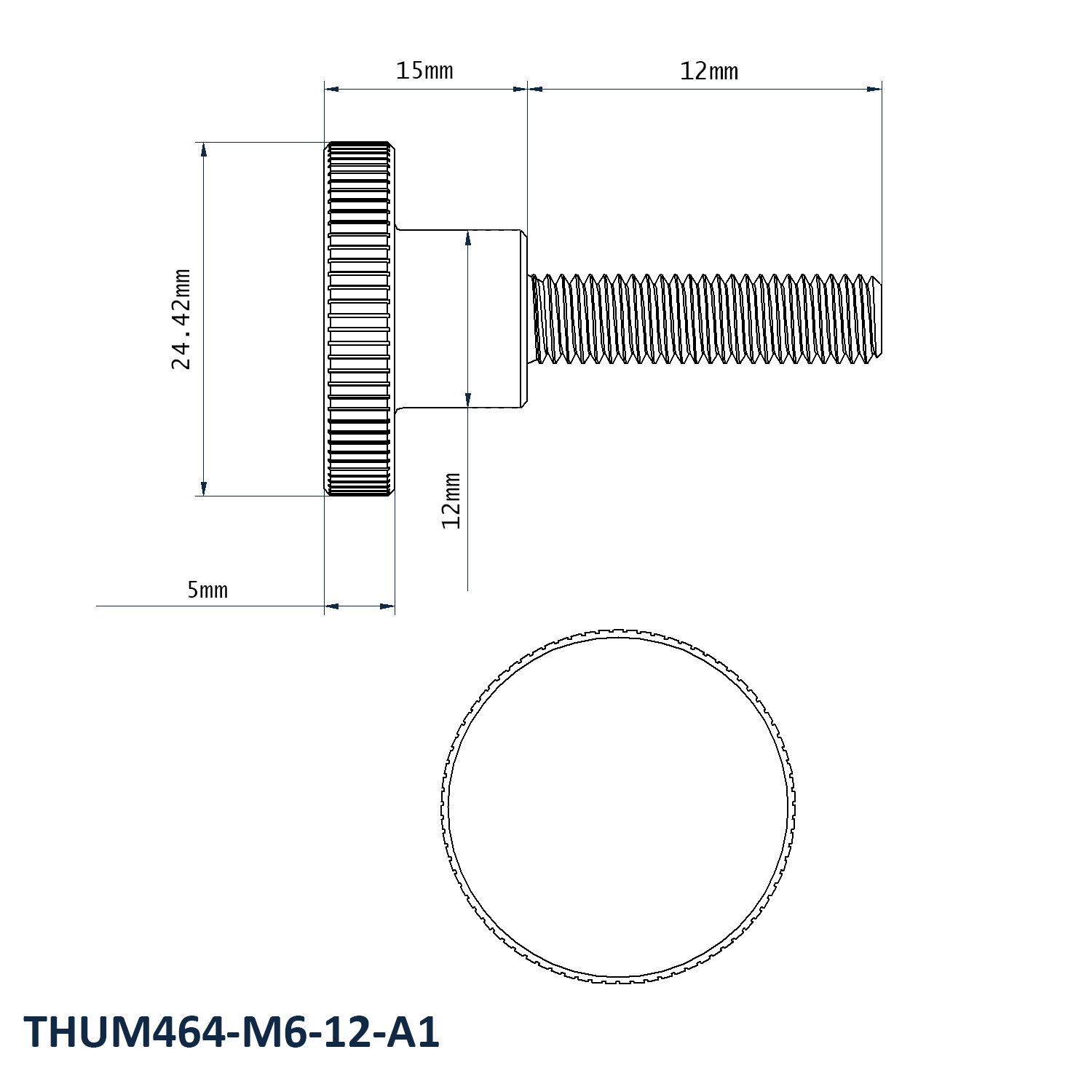

M6 x 12mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M6
  • Thread Length: 12mm
  • Pitch: 1.00mm
  • Head Diameter: 24.42mm
  • Head Height: 15.0mm
  • Knurled Height: 5.0mm
  • Shank Diameter: 12.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • 12.0mm shank diameter provides the specified shoulder dimension beneath the head.
  • DIN 464 manufacture provides a recognised dimensional standard for this knurled thumb screw style.
  • M6 thread size with 12mm thread length provides the primary fastening dimensions.
  • 15.0mm head height provides the stated DIN 464 head profile.

Compare more metric sizes in our Knurled Thumb Screw DIN 464 range. For other manual fastening options, take a look at our complete Knurled Fasteners range. If you are unsure which thread or length suits your application, contact our team on 01233 713581.
