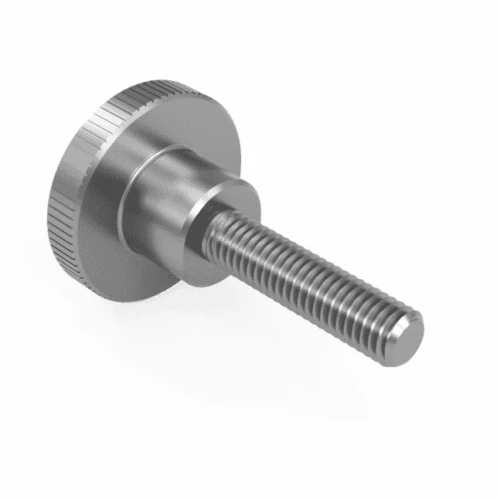

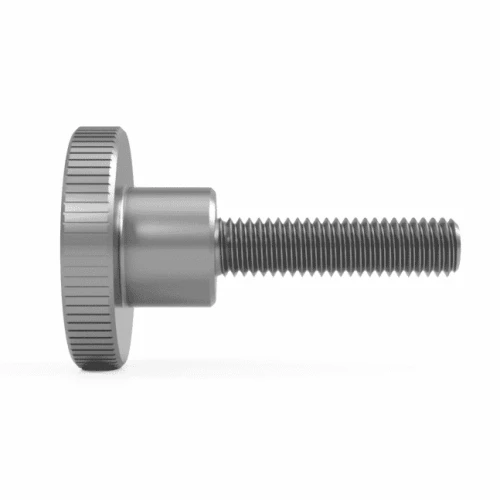

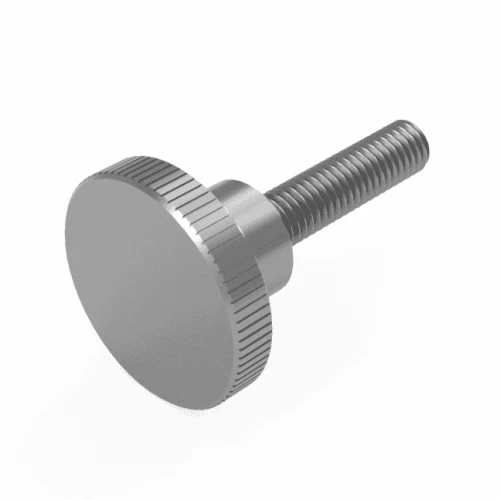

M6 x 25mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M6-25-A1
View All Specifications
M6 x 25mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 25mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 25mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 25mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 25mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 25mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £6.78 £8.14
10 - 24 £4.52 £5.42
25 - 49 £3.39 £4.07
50 - 99 £3.17 £3.80
100 + £2.83 £3.39

£8.14 / each


Up to 15 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 199 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 3,737 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
3,737 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Thread Length 25mm
Pitch 1.00mm
Head Diameter 24.42mm
Head Height 15.0mm
Knurled Height 5.0mm
Shank Diameter 12.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 25mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

This M6 x 25mm knurled thumb screw is suited to instrument housings and control equipment where regular access or position changes make a conventional tool-driven screw less convenient. Its DIN 464 knurled head can be turned by hand while the shoulder beneath the head provides additional stand-off from the mating surface. This size is also relevant when comparing manual clamping screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

Thumb Screws are commonly used where an operator needs to release or reposition a component frequently. The knurled head provides a secure hand grip while the machine thread engages a matching tapped hole or threaded component.

Common Applications

  • Machine Guards: Allows guards and access covers to be secured while still permitting regular tool-free removal.
  • Control Panels: Secures removable panels and covers that may require repeated access for inspection or maintenance.
  • Equipment Housings: Provides an accessible fastening point on machinery covers, cases and instrument enclosures.
  • Maintenance Covers: Makes frequently accessed covers easier to remove and refit without dedicated tools.

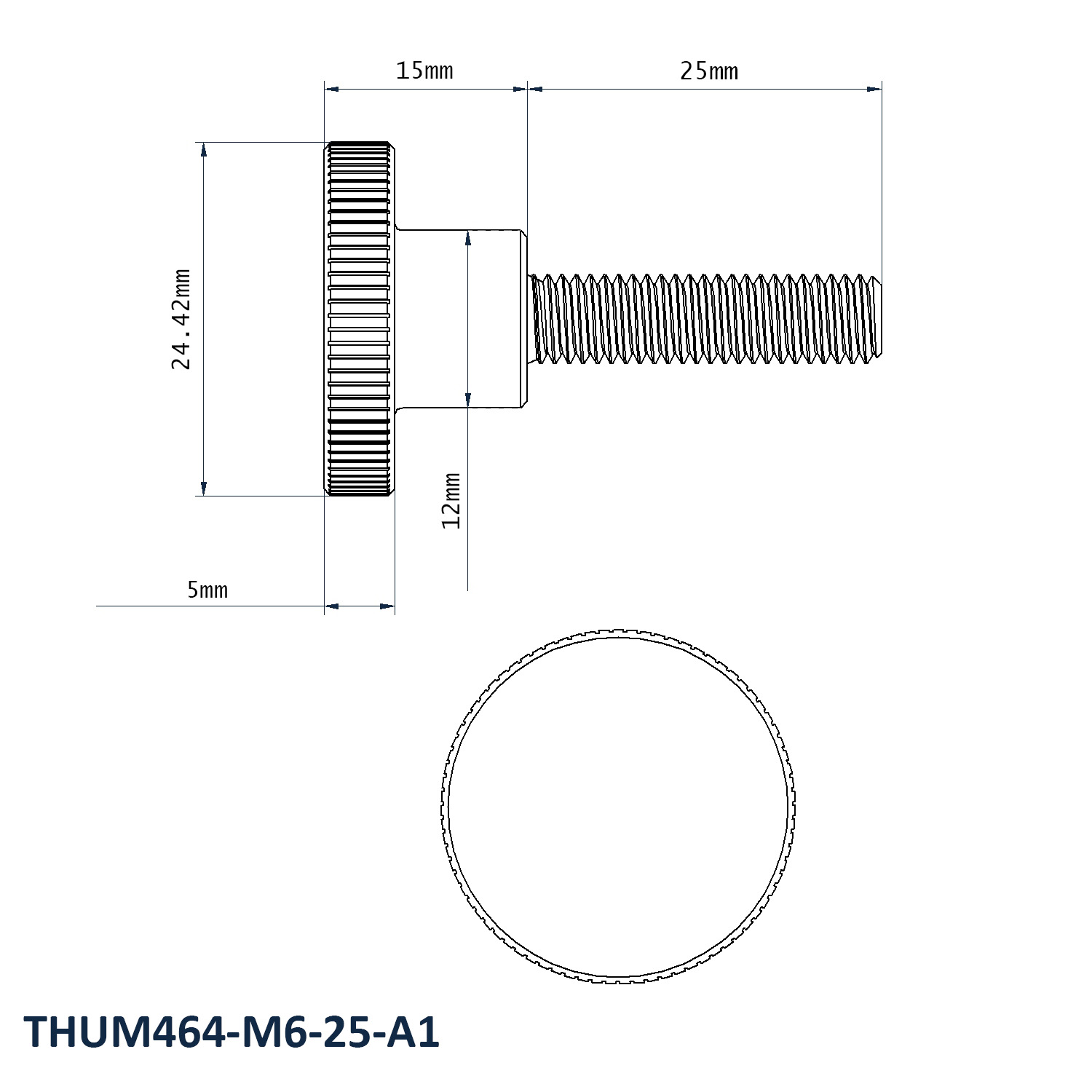

M6 x 25mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M6
  • Thread Length: 25mm
  • Pitch: 1.00mm
  • Head Diameter: 24.42mm
  • Head Height: 15.0mm
  • Knurled Height: 5.0mm
  • Shank Diameter: 12.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • Large knurled head enables tightening and loosening by hand without a separate driving tool.
  • M6 thread size with 25mm thread length provides the primary fastening dimensions.
  • 15.0mm head height provides the stated DIN 464 head profile.
  • A1 Stainless Steel construction supports repeated manual use and provides corrosion resistance for general engineering applications.

Explore the complete Knurled Hand Screw DIN 464 range for other metric sizes. Our broader Knurled Fasteners range includes additional options for manual clamping, adjustment and repeated-access fastening. If you need technical sizing help, call us on 01233 713581.
