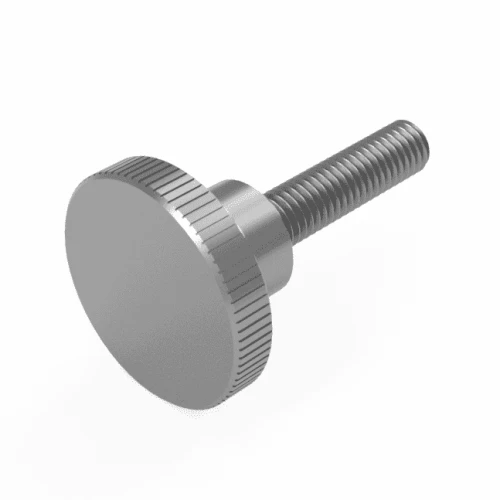

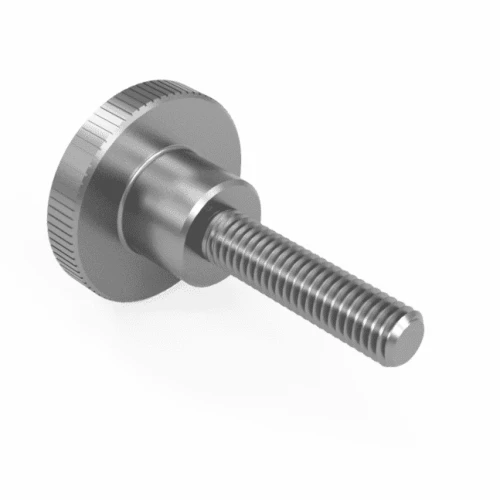

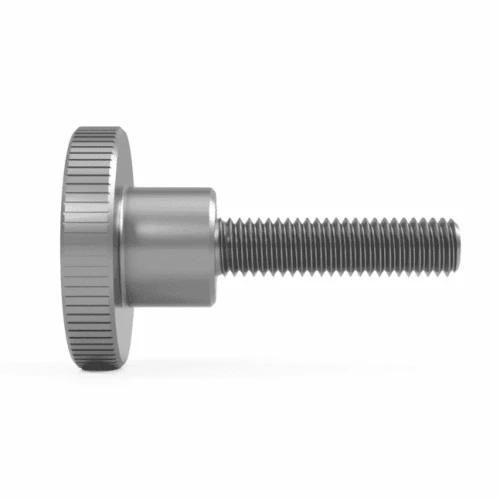

M6 x 30mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel

Product code: THUM464-M6-30-A1
View All Specifications
M6 x 30mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 30mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 30mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 30mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 30mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
M6 x 30mm Knurled Thumb Screw (DIN 464) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 49 £5.21 £6.25
50 - 99 £4.24 £5.09
100 - 499 £3.60 £4.32
500 - 999 £3.24 £3.89
1000 + £2.71 £3.25

£6.25 / each


Up to 22 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 1,372 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
1,372 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Thread Length 30mm
Pitch 1.00mm
Head Diameter 24.42mm
Head Height 15.0mm
Knurled Height 5.0mm
Shank Diameter 12.0mm
Standard DIN 464
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 30mm Knurled Thumb Screw | DIN 464 | A1 Stainless Steel

Providing quick manual fastening for manual positioning and adjustment points, this M6 x 30mm knurled thumb screw uses a wide knurled head to transfer turning force through the fingers. The A1 Stainless Steel body and DIN 464 dimensions make it suitable for threaded components used in clamping, levelling and adjustment work. This size is also relevant when comparing grip head screw options for compatible threaded assemblies.

What Are DIN 464 Knurled Thumb Screws?

Thumb Screws are commonly used where an operator needs to release or reposition a component frequently. The knurled head provides a secure hand grip while the machine thread engages a matching tapped hole or threaded component.

Common Applications

  • Adjustment Points: Provides a hand-operated threaded fastener for setting positions, stops or clearances.
  • Equipment Housings: Provides an accessible fastening point on machinery covers, cases and instrument enclosures.
  • Maintenance Covers: Makes frequently accessed covers easier to remove and refit without dedicated tools.
  • Jigs and Fixtures: Provides quick manual clamping or repositioning on workshop tooling and production fixtures.

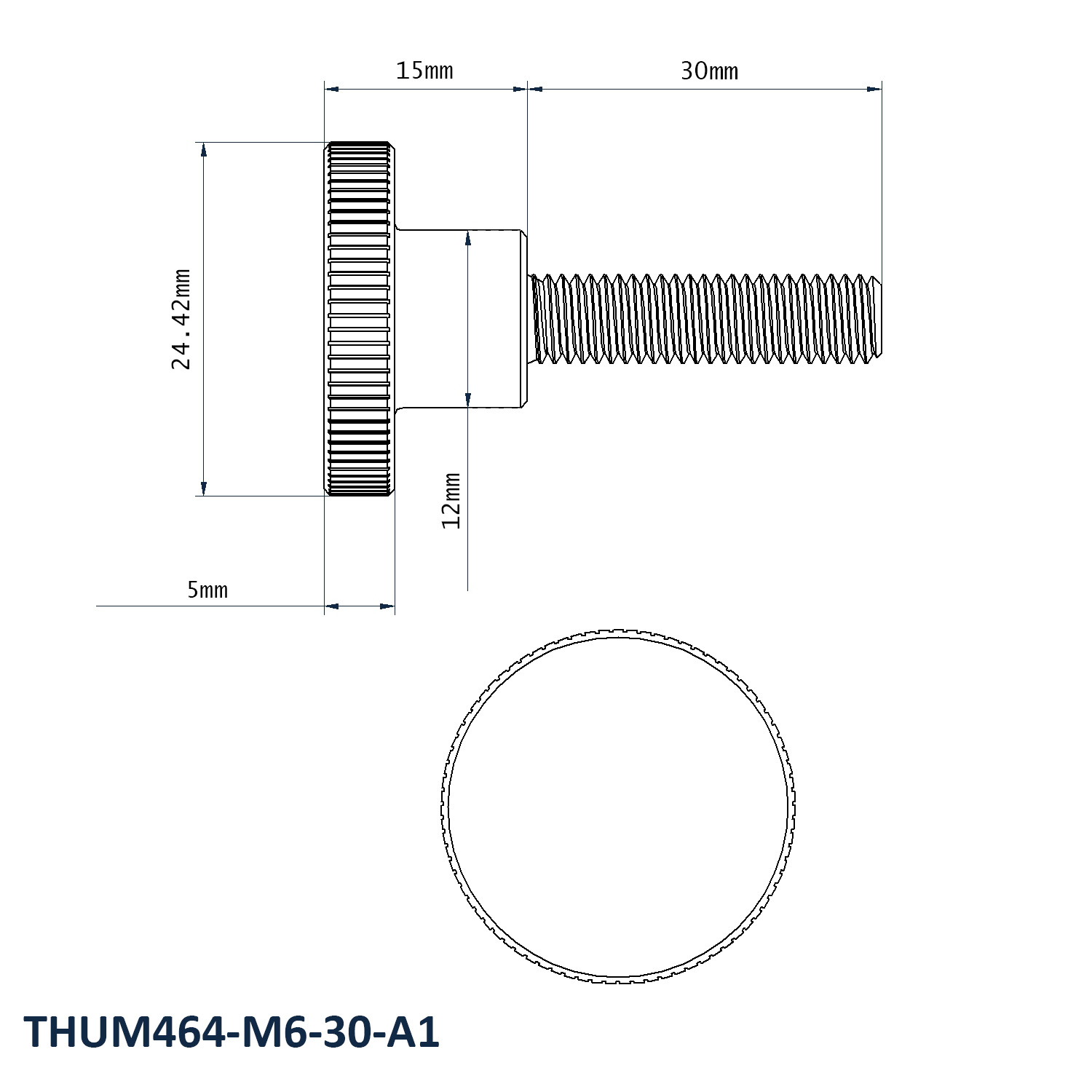

M6 x 30mm DIN 464 Knurled Thumb Screw Dimensions

  • Thread Size: M6
  • Thread Length: 30mm
  • Pitch: 1.00mm
  • Head Diameter: 24.42mm
  • Head Height: 15.0mm
  • Knurled Height: 5.0mm
  • Shank Diameter: 12.0mm
  • Material: A1 Stainless Steel
  • Standard: DIN 464

Key Benefits

  • Shoulder beneath the head can provide stand-off from the mating surface and suit compatible panel or spring arrangements.
  • 1.00mm metric pitch matches the specified DIN 464 thread for this size.
  • 5.0mm knurled height provides the textured gripping section around the head circumference.
  • DIN 464 manufacture provides a recognised dimensional standard for this knurled thumb screw style.

Find other sizes in our DIN 464 Knurled Screw range. If this head style is not the right fit, we also have other products available in our Knurled Fasteners category. If you need help matching the screw to a threaded component, contact our team on 01233 713581.
