M2.5 x 3mm Slotted Set Screws - Cup Point (DIN 438) | A1 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.42 | £4.10 |
| 10 - 24 | £2.73 | £3.28 |
| 25 - 49 | £2.05 | £2.46 |
| 50 - 99 | £1.71 | £2.05 |
| 100 - 499 | £1.54 | £1.85 |
| 500 - 999 | £1.37 | £1.64 |
| 1000 + | £1.02 | £1.23 |
Product Specification
| Thread Size | M2.5 |
| Thread Length | 3mm |
| Pitch | 0.45mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A1 Stainless Steel |

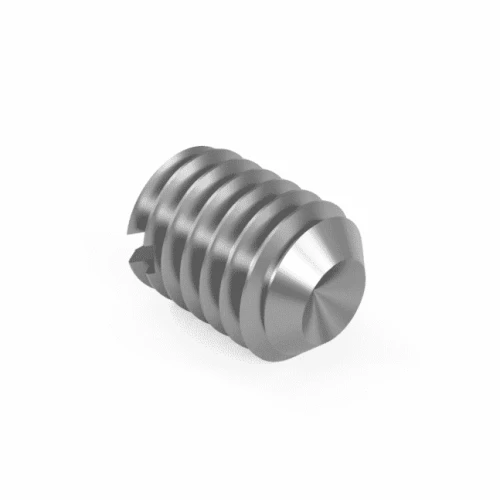

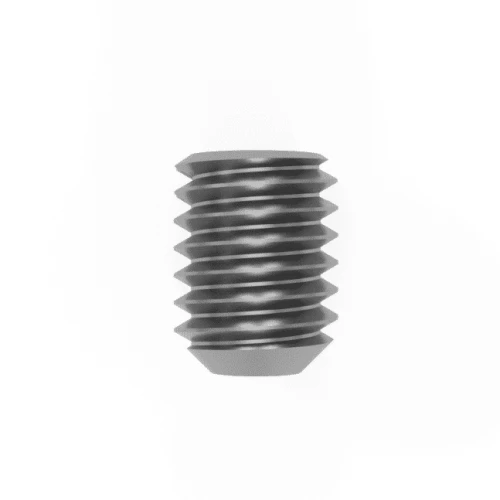

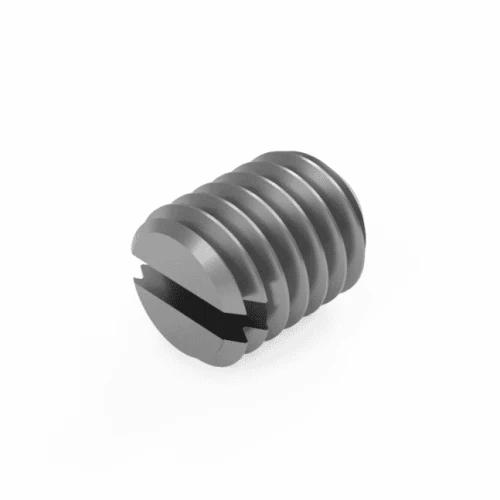

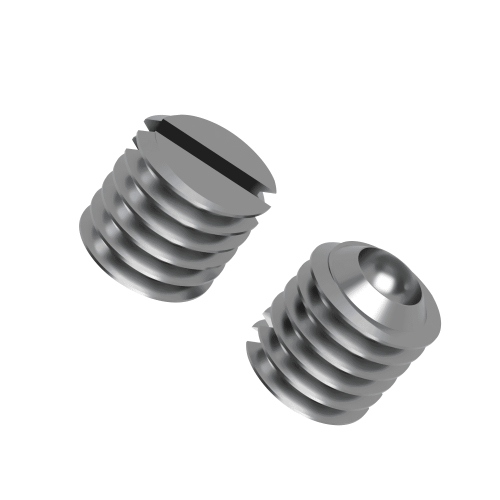

M2.5 x 3mm Slotted Grub Screw Cup Point A1 Stainless Steel DIN 438
The M2.5 x 3mm slotted cup point set screw is one of the smallest standard grub screws available. At just 2.5mm thread diameter and 3mm long it is built exclusively for miniature assemblies - watch mechanisms, micro optical mounts and tiny instrument housings where even an M3 would be too large. The cup point leaves a ring-shaped indentation on the shaft surface rather than a sharp gouge, protecting delicate surfaces during tightening. Tighten with a flat-head screwdriver or slotted bit. A1 stainless steel is non-magnetic and fully corrosion resistant - ideal where the set screw must not interfere with sensitive electronics nearby. Headless design sits flush within the threaded hole. DIN 438 / ISO 7436 compliant.
Common Applications
- Watch and clock mechanisms
- Micro optical and camera mount assemblies
- Miniature instrument housings
- Non-magnetic precision electronics assemblies

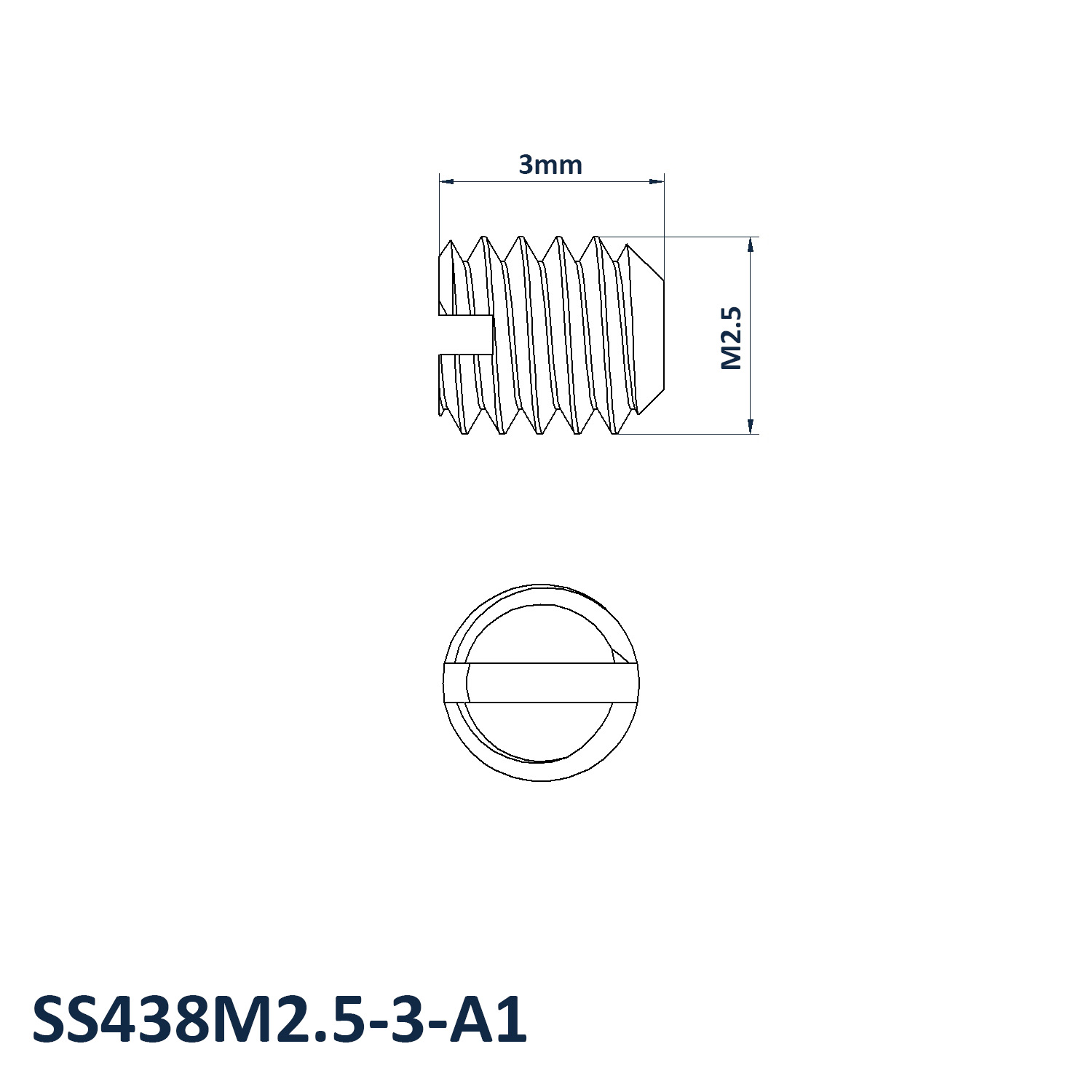

M2.5 Set Screw Dimensions
- Thread Size: M2.5
- Thread Length: 3mm
- Pitch: 0.45mm
- End Type: Cup
- Drive: Slotted
- Material: A1 Stainless Steel (Non-Magnetic)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
