M2.5 x 5mm Slotted Set Screws - Cup Point (DIN 438) | A1 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.62 | £4.35 |
| 10 - 24 | £2.90 | £3.48 |
| 25 - 49 | £2.17 | £2.61 |
| 50 - 99 | £1.82 | £2.18 |
| 100 - 499 | £1.63 | £1.96 |
| 500 - 999 | £1.45 | £1.74 |
| 1000 + | £1.09 | £1.31 |
Product Specification
| Thread Size | M2.5 |
| Thread Length | 5mm |
| Pitch | 0.45mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A1 Stainless Steel |

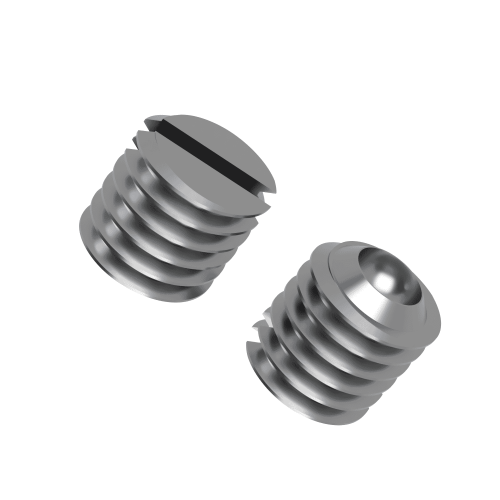

M2.5 x 5mm Slotted Grub Screw Cup Point A1 Stainless Steel DIN 438
The M2.5 x 5mm slotted grub screw is the general-purpose option in the M2.5 set screw range. Five millimetres gives you two full thread diameters of engagement - enough for dependable holding in everyday light-duty rotating assemblies at this scale. Commonly used in small DC motor shaft collars, miniature pulley hubs and laboratory equipment where a clean headless fixing is required and space will not allow anything larger than M2.5. Drive with a flat-head screwdriver. The cup point grips the shaft without damaging the surface and A1 stainless steel ensures the screw stays corrosion free. DIN 438 / ISO 7436 compliant.
Common Applications
- Small DC motor shaft collar retention
- Miniature pulley hub fixing
- Laboratory and scientific equipment
- General-purpose M2.5 shaft locking

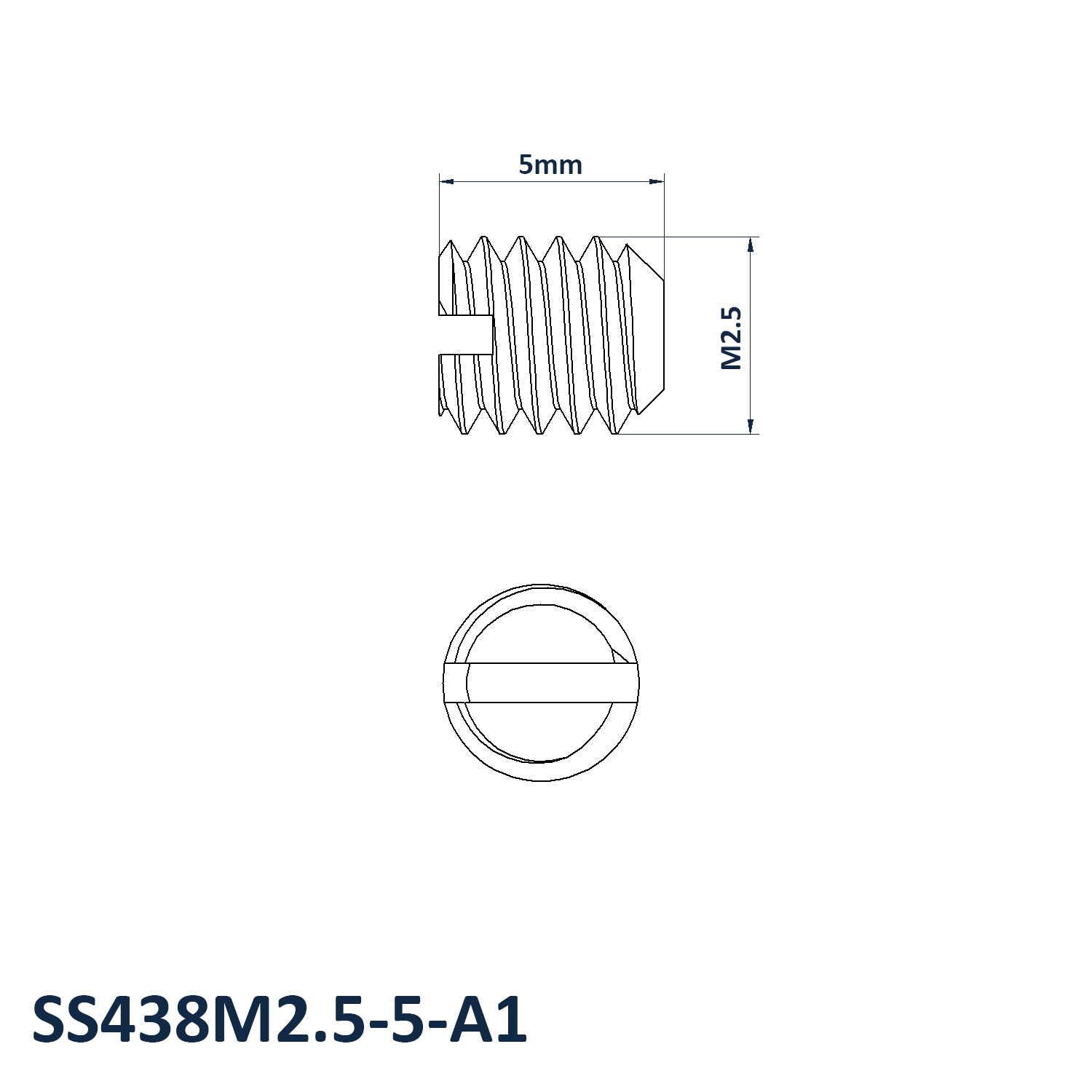

M2.5 Grub Screw Dimensions
- Thread Size: M2.5
- Thread Length: 5mm
- Pitch: 0.45mm
- End Type: Cup
- Drive: Slotted
- Material: A1 Stainless Steel (Non-Magnetic)
- Standard: DIN 438 / ISO 7436
