M3 x 3mm Slotted Set Screws - Cup Point (DIN 438) | A1 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.62 | £4.35 |
| 10 - 24 | £2.90 | £3.48 |
| 25 - 49 | £2.17 | £2.61 |
| 50 - 99 | £1.82 | £2.18 |
| 100 - 499 | £1.63 | £1.96 |
| 500 - 999 | £1.45 | £1.74 |
| 1000 + | £1.09 | £1.31 |
Product Specification
| Thread Size | M3 |
| Thread Length | 3mm |
| Pitch | 0.5mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A1 |

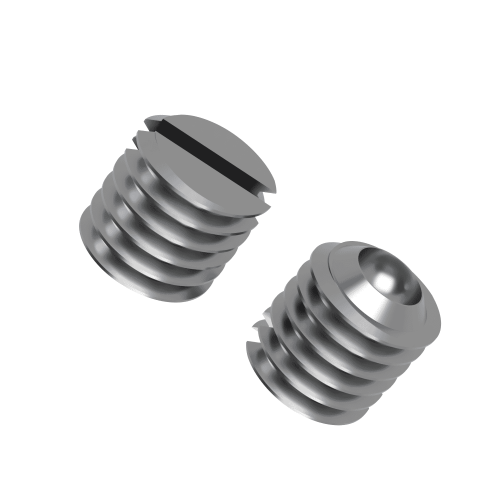

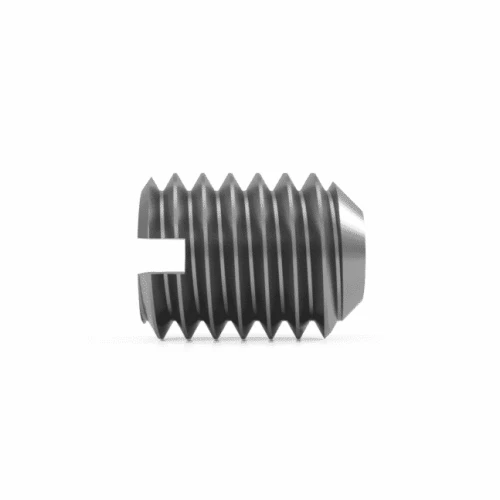

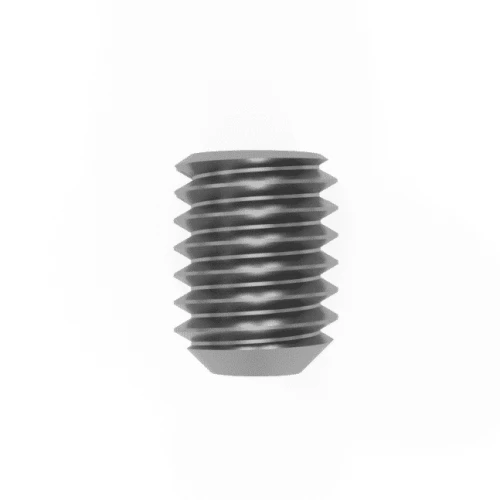

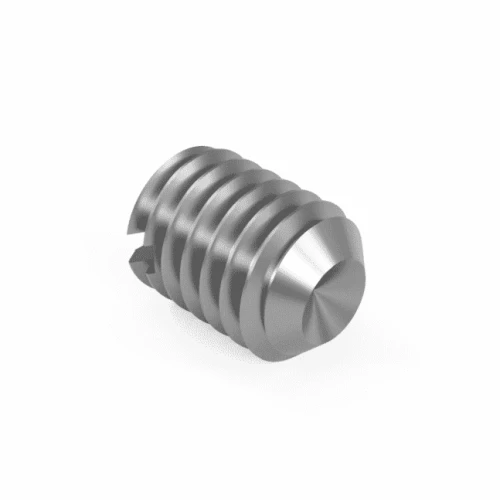

M3 x 3mm Slotted Grub Screw Cup Point A1 Stainless Steel DIN 438
The M3 x 3mm slotted cup point set screw is the shortest option in our M3 range - one full thread diameter of engagement. Built for applications where bore depth is severely restricted: sub-miniature shaft collar locking on 3mm shafts, thin bracket mounts and precision optical housings where the assembly leaves no room for a longer fastener. The cup point creates a ring-shaped grip on the shaft surface without the surface damage a cone point causes - important on polished or coated shafts. Drive with a flat-head screwdriver. A1 stainless steel, non-magnetic. DIN 438 / ISO 7436 compliant.
Common Applications
- Sub-miniature shaft collar locking on 3mm shafts
- Thin bracket and plate mounts with restricted bore depth
- Precision optical and instrument housings
- Non-magnetic assemblies in sensitive electronic environments

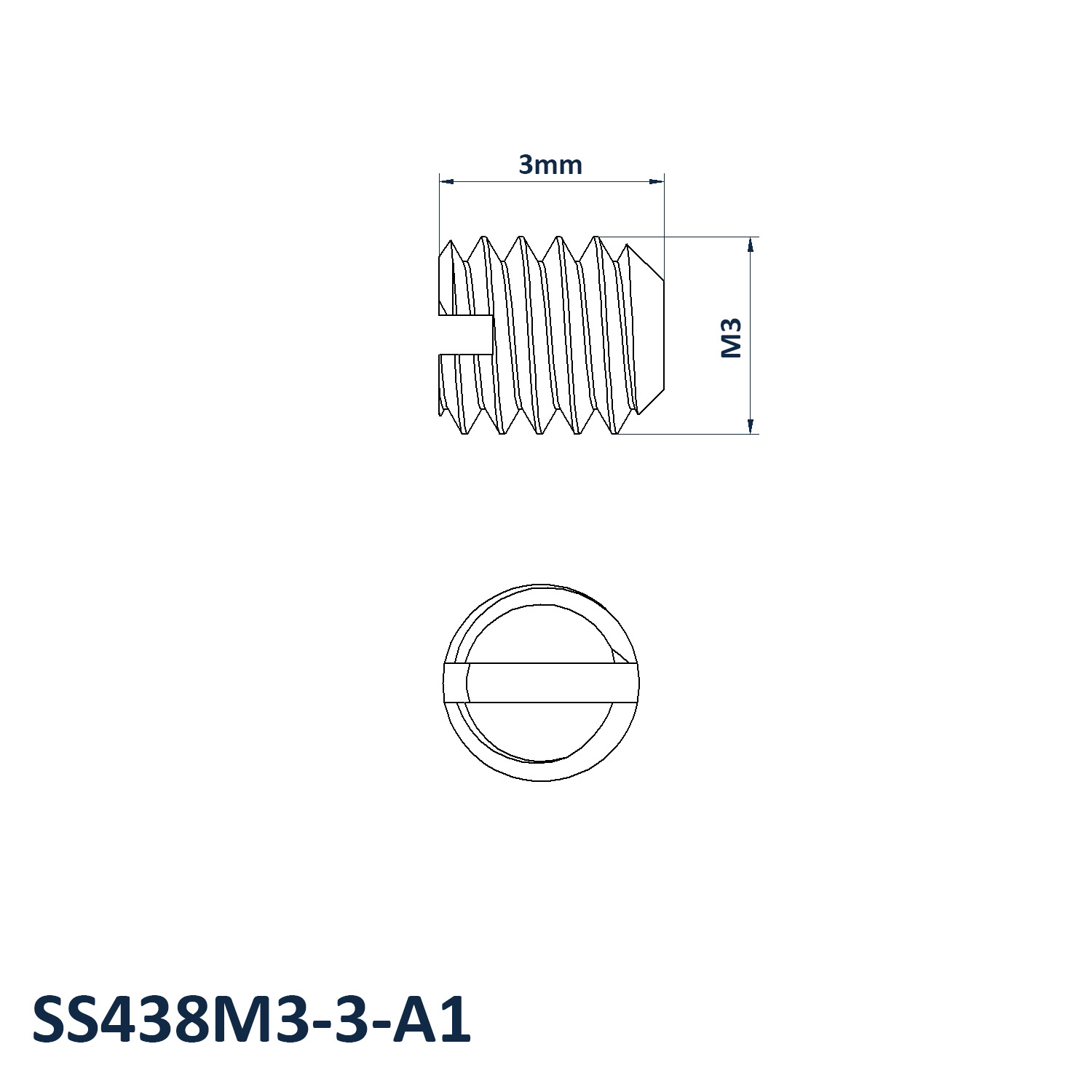

M3 Set Screw Dimensions
- Thread Size: M3
- Thread Length: 3mm
- Pitch: 0.5mm
- End Type: Cup
- Drive: Slotted
- Material: A1 Stainless Steel (Non-Magnetic)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
Need help or buying in bulk?
Our team can advise on the shortest M3 engagement applications and provide volume pricing. Call 01233 713581.
