M3 x 5mm Slotted Set Screws - Cup Point (DIN 438) | A1 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.98 | £1.18 |
| 10 - 24 | £0.78 | £0.94 |
| 25 - 49 | £0.59 | £0.71 |
| 50 - 99 | £0.49 | £0.59 |
| 100 - 499 | £0.44 | £0.53 |
| 500 - 999 | £0.39 | £0.47 |
| 1000 + | £0.29 | £0.35 |
Product Specification
| Thread Size | M3 |
| Thread Length | 5mm |
| Pitch | 0.5mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A1 Stainless Steel |

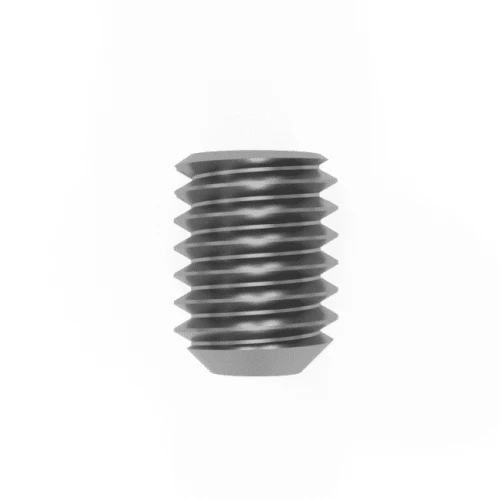

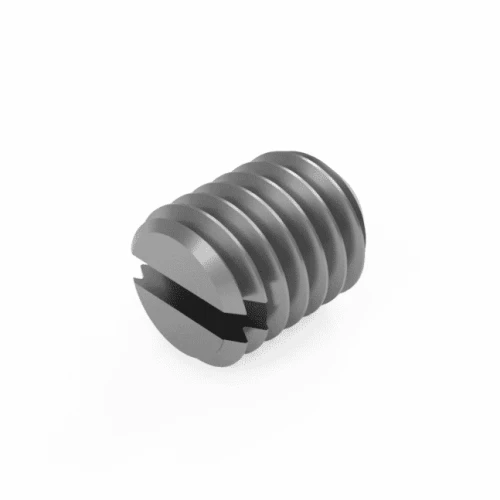

M3 x 5mm Slotted Grub Screw Cup Point A1 Stainless Steel DIN 438
The M3 x 5mm slotted grub screw is a well-balanced general-purpose set screw - one and two-thirds thread diameters of engagement - suited to light-duty collar and hub locking across a broad range of small engineering assemblies. A frequent choice for knob-to-shaft retention on control panels, small coupling locks and miniature gearbox assemblies where a neat headless design is preferable to a visible screw head. Tighten with a standard flat-head screwdriver. The cup point sits cleanly in the shaft surface and A1 stainless steel keeps the screw corrosion free. DIN 438 / ISO 7436 compliant.
Common Applications
- Knob-to-shaft retention on control panels and instruments
- Small coupling and hub locking in compact machinery
- Miniature gearbox and drive assembly retention
- General-purpose light-duty M3 shaft locking

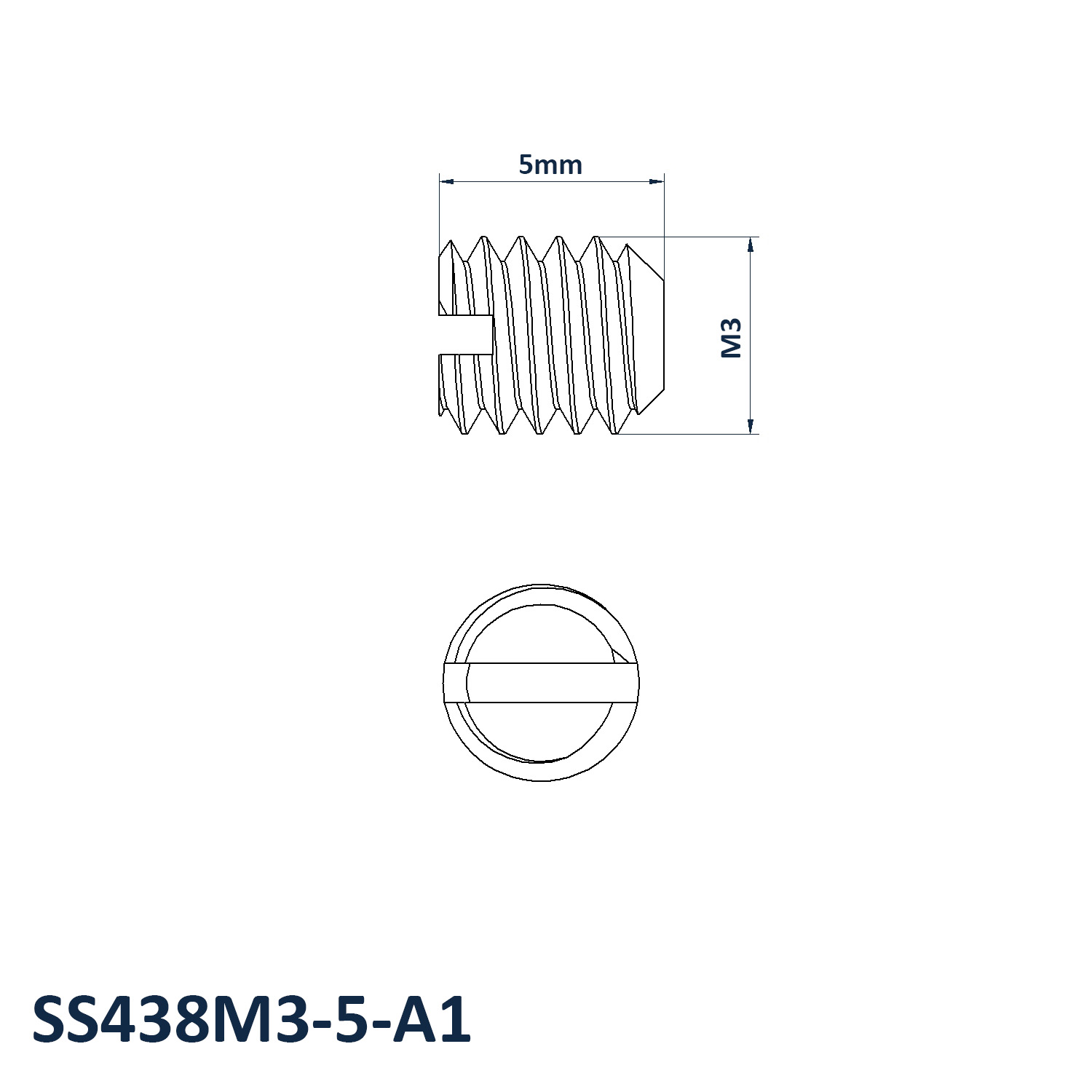

M3 Set Screw Dimensions
- Thread Size: M3
- Thread Length: 5mm
- Pitch: 0.5mm
- End Type: Cup
- Drive: Slotted
- Material: A1 Stainless Steel (Non-Magnetic)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
