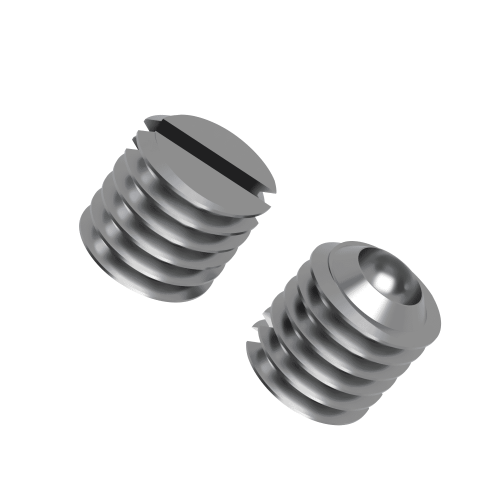

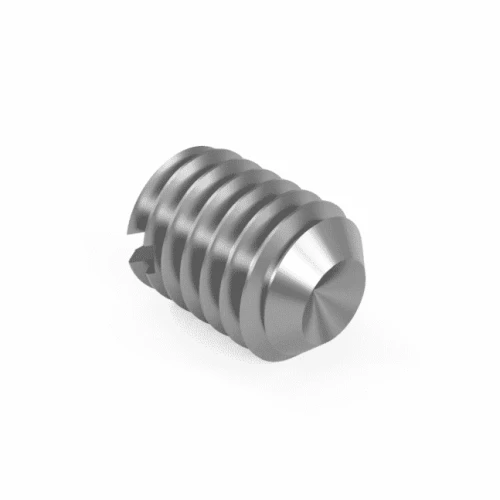

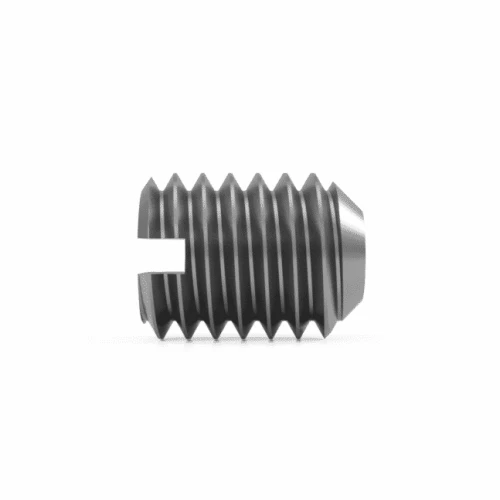

M3 x 16mm Slotted Set Screws - Cup Point (DIN 438) | A1 Stainless Steel
Product code:
SS438M3-16-A1
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.52 | £5.42 |
| 10 - 24 | £3.62 | £4.34 |
| 25 - 49 | £2.71 | £3.25 |
| 50 - 99 | £2.26 | £2.71 |
| 100 - 499 | £2.03 | £2.44 |
| 500 - 999 | £1.81 | £2.17 |
| 1000 + | £1.36 | £1.63 |
£5.42
/ each
Quantity:
Product Specification
| Thread Size | M3 |
| Thread Length | 16mm |
| Pitch | 0.5mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A1 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
M3 x 16mm Slotted Grub Screw Cup Point A1 Stainless Steel DIN 438
The M3 x 16mm slotted set screw is over five times the thread diameter - a very long engagement that signals a specialist application. Most often found in adjustable stop-bolt assemblies, spring-loaded depth-setting mechanisms and custom jig work where a long headless M3 body with a cup end is exactly what is needed. Drive with a flat-head screwdriver and fine-tune the screw to a precise position within the threaded bore. A1 stainless steel handles damp and chemical environments without corrosion. DIN 438 / ISO 7436 compliant.
Common Applications
- Adjustable stop-bolt assemblies requiring long M3 reach
- Spring-loaded depth-setting mechanisms
- Custom jig and fixture work
- Damp and chemical-resistant precision assemblies

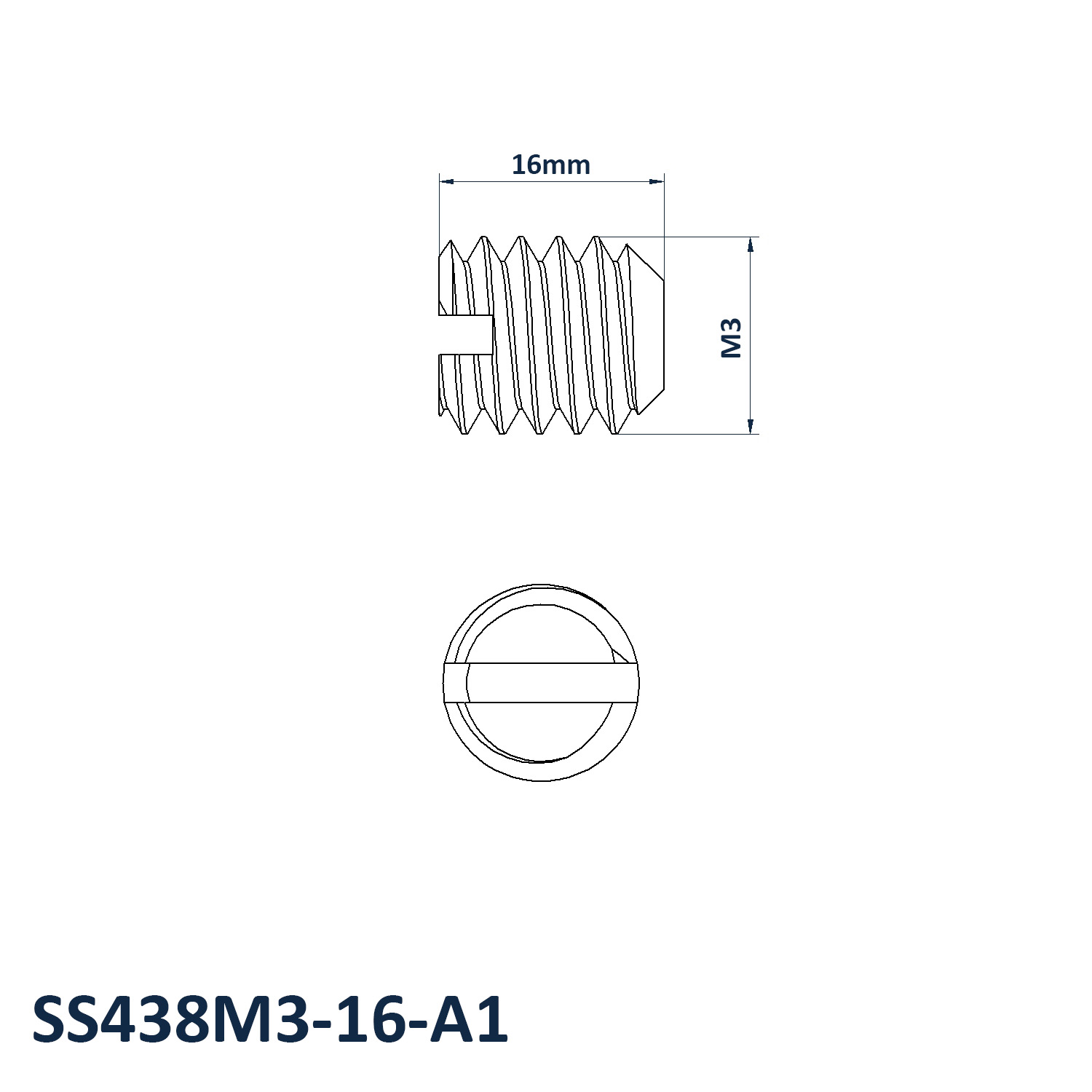

M3 Grub Screw Dimensions
- Thread Size: M3
- Thread Length: 16mm
- Pitch: 0.5mm
- End Type: Cup
- Drive: Slotted
- Material: A1 Stainless Steel (Non-Magnetic)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
