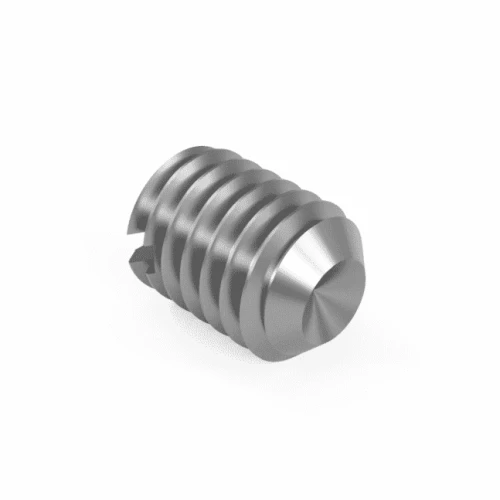

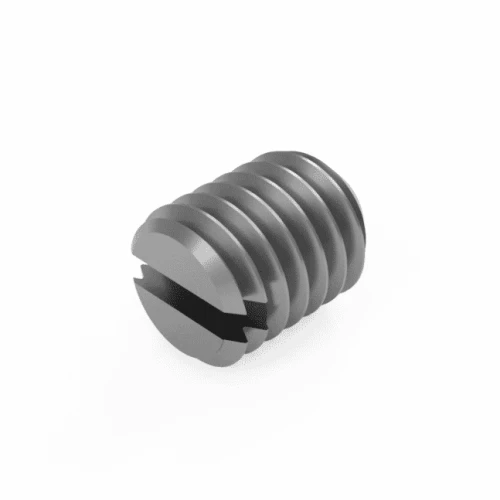

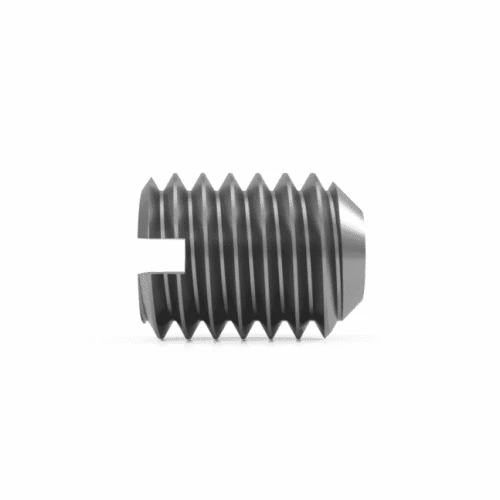

M3 x 20mm Slotted Set Screws - Cup Point (DIN 438) | A1 Stainless Steel
Product code:
SS438M3-20-A1
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.70 | £6.84 |
| 10 - 24 | £4.56 | £5.47 |
| 25 - 49 | £3.42 | £4.10 |
| 50 - 99 | £2.85 | £3.42 |
| 100 - 499 | £2.57 | £3.08 |
| 500 - 999 | £2.27 | £2.73 |
| 1000 + | £1.71 | £2.05 |
£6.84
/ each
Quantity:
Product Specification
| Thread Size | M3 |
| Thread Length | 20mm |
| Pitch | 0.5mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A1 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
M3 x 20mm Slotted Grub Screw Cup Point A1 Stainless Steel DIN 438
The M3 x 20mm slotted set screw is more than six and a half times the thread diameter - a very specialist long-reach M3 fastener. At 20mm this headless grub screw is used as a long threaded element rather than a conventional shaft lock: spring-compression adjusters, pressure-setting mechanisms and custom jig assemblies where an M3 thread needs to reach a point deep within a component. Drive with a flat-head screwdriver. The cup end provides clean, controlled contact at the tip. A1 stainless steel throughout. DIN 438 / ISO 7436 compliant.
Common Applications
- Spring-compression adjusters and pressure-setting mechanisms
- Custom jig assemblies with extreme depth requirements
- Long-reach M3 threaded element applications
- Bespoke equipment where standard lengths are insufficient

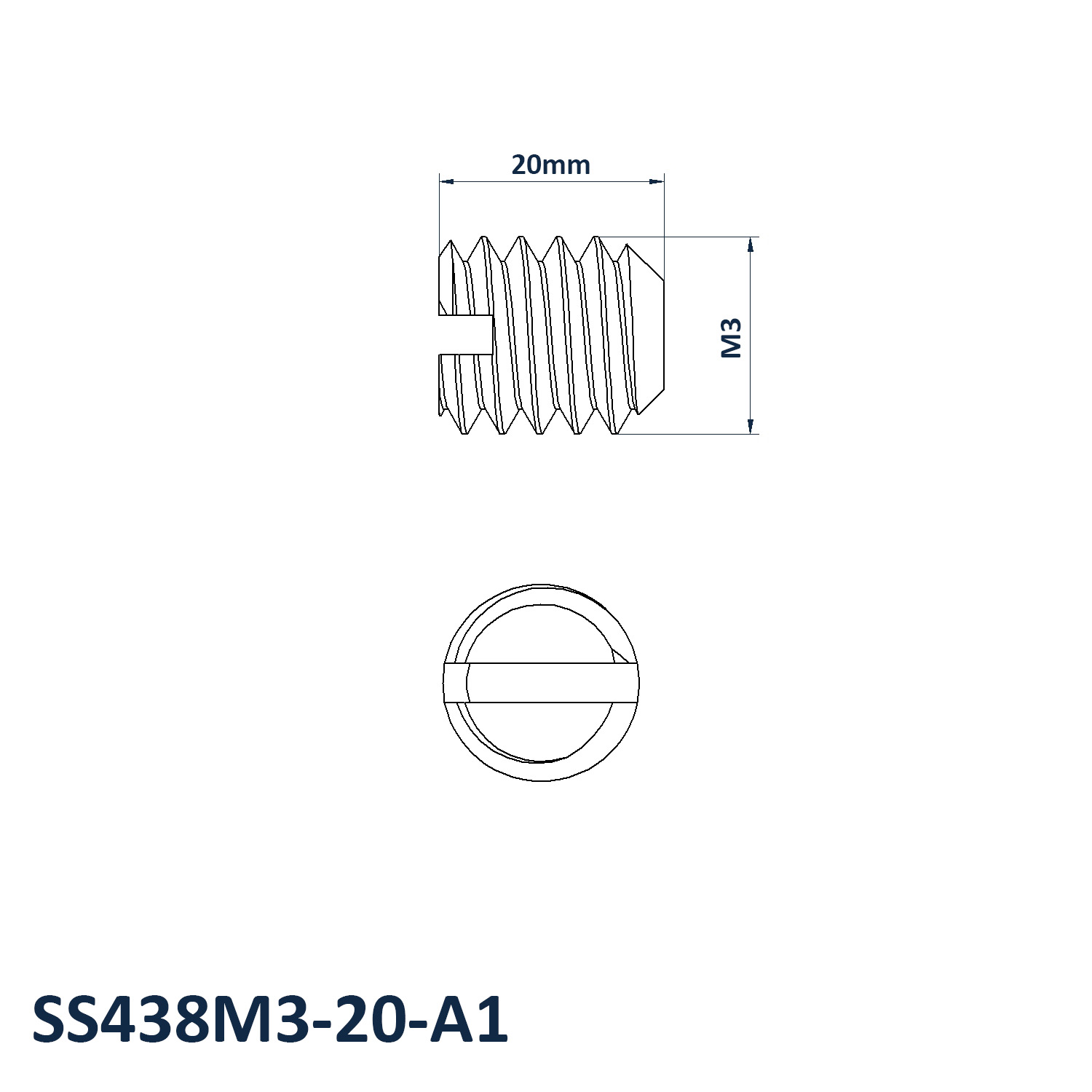

M3 Set Screw Dimensions
- Thread Size: M3
- Thread Length: 20mm
- Pitch: 0.5mm
- End Type: Cup
- Drive: Slotted
- Material: A1 Stainless Steel (Non-Magnetic)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
Need help or buying in bulk?
Our team can confirm suitability for your long-reach application and provide volume pricing. Call 01233 713581.
