M5 x 12mm Slotted Set Screws - Cup Point (DIN 438) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.42 | £5.31 |
| 10 - 24 | £3.53 | £4.24 |
| 25 - 49 | £2.65 | £3.18 |
| 50 - 99 | £2.21 | £2.65 |
| 100 - 499 | £1.99 | £2.39 |
| 500 - 999 | £1.77 | £2.12 |
| 1000 + | £1.32 | £1.59 |
Product Specification
| Thread Size | M5 |
| Thread Length | 12mm |
| Pitch | 0.8mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

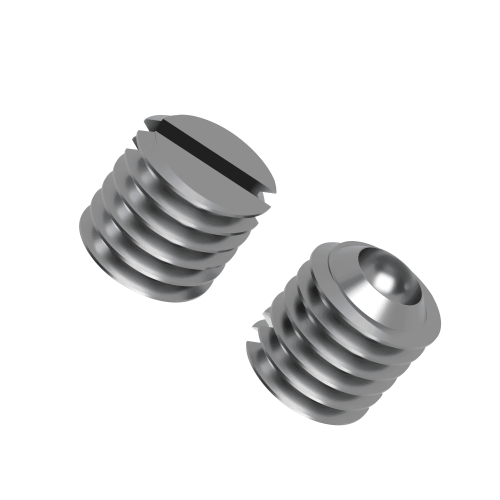

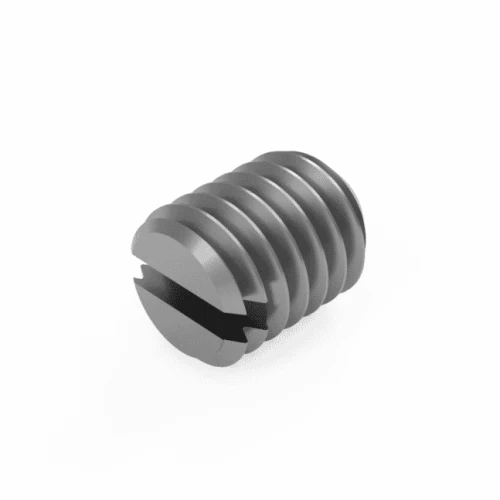

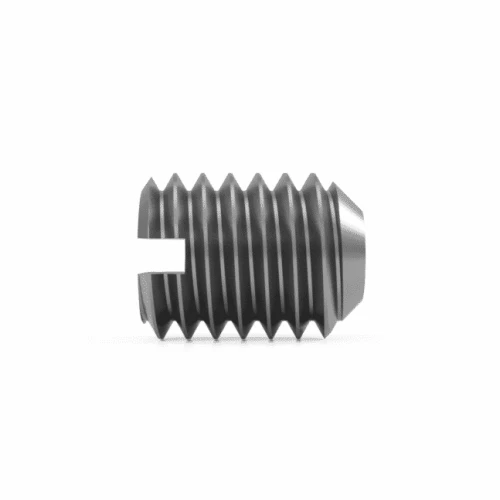

M5 x 12mm Slotted Grub Screw Cup Point A2 Stainless Steel DIN 438
The M5 x 12mm slotted set screw delivers over two full diameters of engagement - the go-to for M5 shaft retention in higher-vibration or higher-load environments. At this length it offers greater pull-out resistance than shorter M5 set screws, making it the right call for food processing equipment, agricultural machinery and industrial plant running in challenging conditions. The cup point grips the shaft surface cleanly. Drive with a flat-head screwdriver. A2 stainless steel (304 / 18-8) resists moisture and mild chemicals. DIN 438 / ISO 7436 compliant.
Common Applications
- High-vibration M5 shaft retention
- Food processing and agricultural machinery
- Moisture and mild chemical resistant environments
- Industrial plant running in challenging conditions

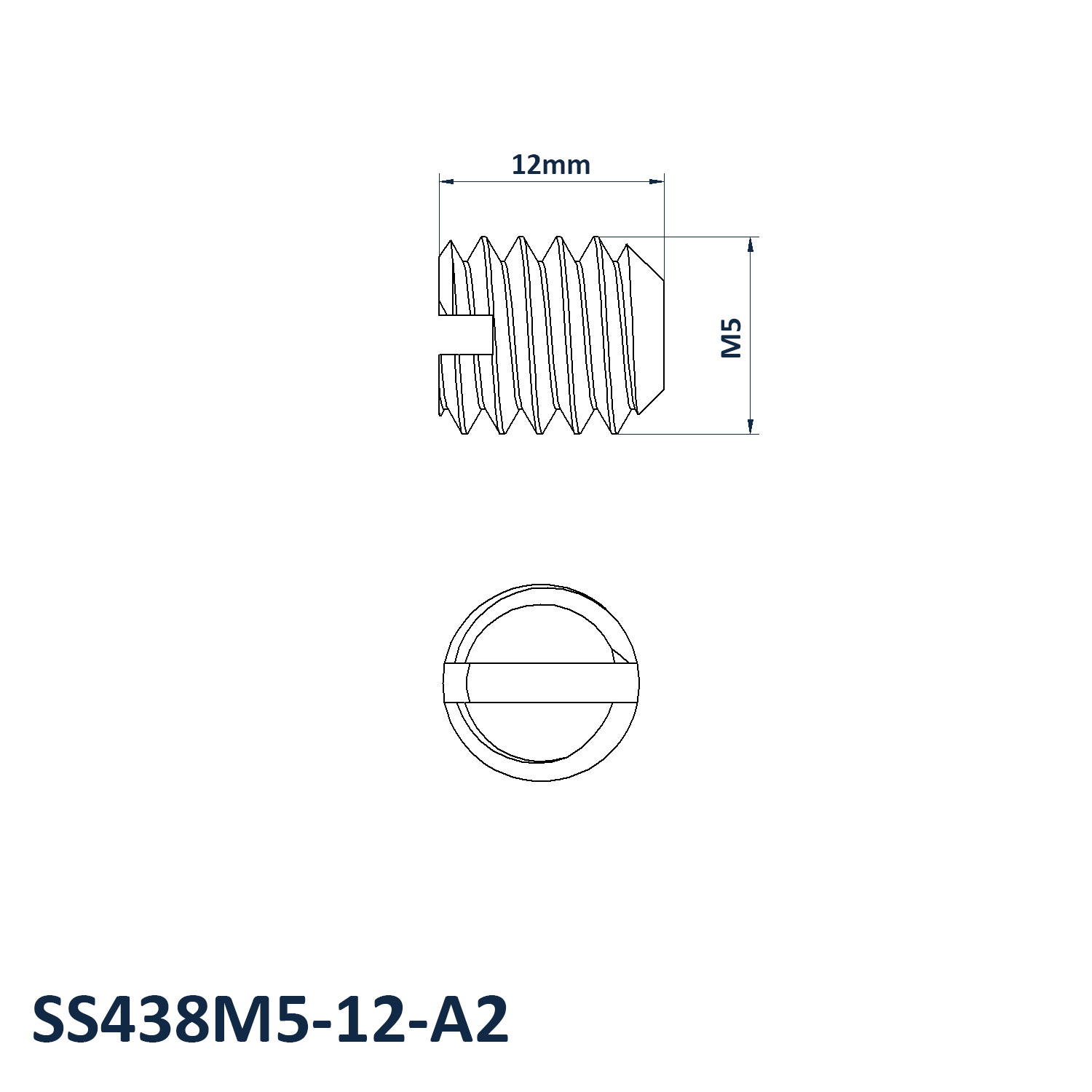

M5 Grub Screw Dimensions
- Thread Size: M5
- Thread Length: 12mm
- Pitch: 0.8mm
- End Type: Cup
- Drive: Slotted
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
Need help or buying in bulk?
Our team can advise on suitability for challenging environments and provide competitive volume pricing. Call 01233 713581.
