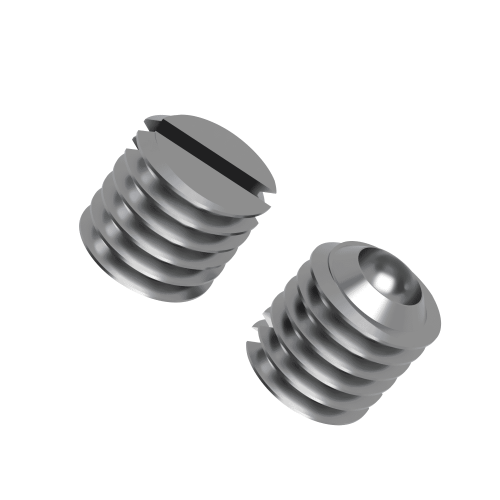

M8 x 8mm Slotted Set Screws - Cup Point (DIN 438) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £6.99 | £8.39 |
| 10 - 24 | £5.59 | £6.71 |
| 25 - 49 | £4.19 | £5.03 |
| 50 - 99 | £3.49 | £4.19 |
| 100 - 499 | £3.15 | £3.78 |
| 500 - 999 | £2.80 | £3.36 |
| 1000 + | £2.10 | £2.52 |
Product Specification
| Thread Size | M8 |
| Thread Length | 8mm |
| Pitch | 1.25mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M8 x 8mm Slotted Grub Screw Cup Point A2 Stainless Steel DIN 438
The M8 x 8mm slotted cup point set screw is one full thread diameter in engagement - the entry-point for M8 shaft locking where bore depth is restricted. At M8 the thread provides considerably more clamping force than smaller sizes so even a single diameter of engagement delivers meaningful holding strength for light and moderate loads. Coupling hubs, shaft collars and bracket mounts on medium-sized machinery are typical applications. Drive with a flat-head screwdriver. A2 stainless steel (304 / 18-8) resists corrosion in standard industrial environments. DIN 438 / ISO 7436 compliant.
Common Applications
- Shallow-bore M8 coupling hub and shaft collar locking
- Bracket and mount fixing on medium-sized machinery
- Light to moderate load M8 shaft retention
- Restricted-depth threaded bore applications

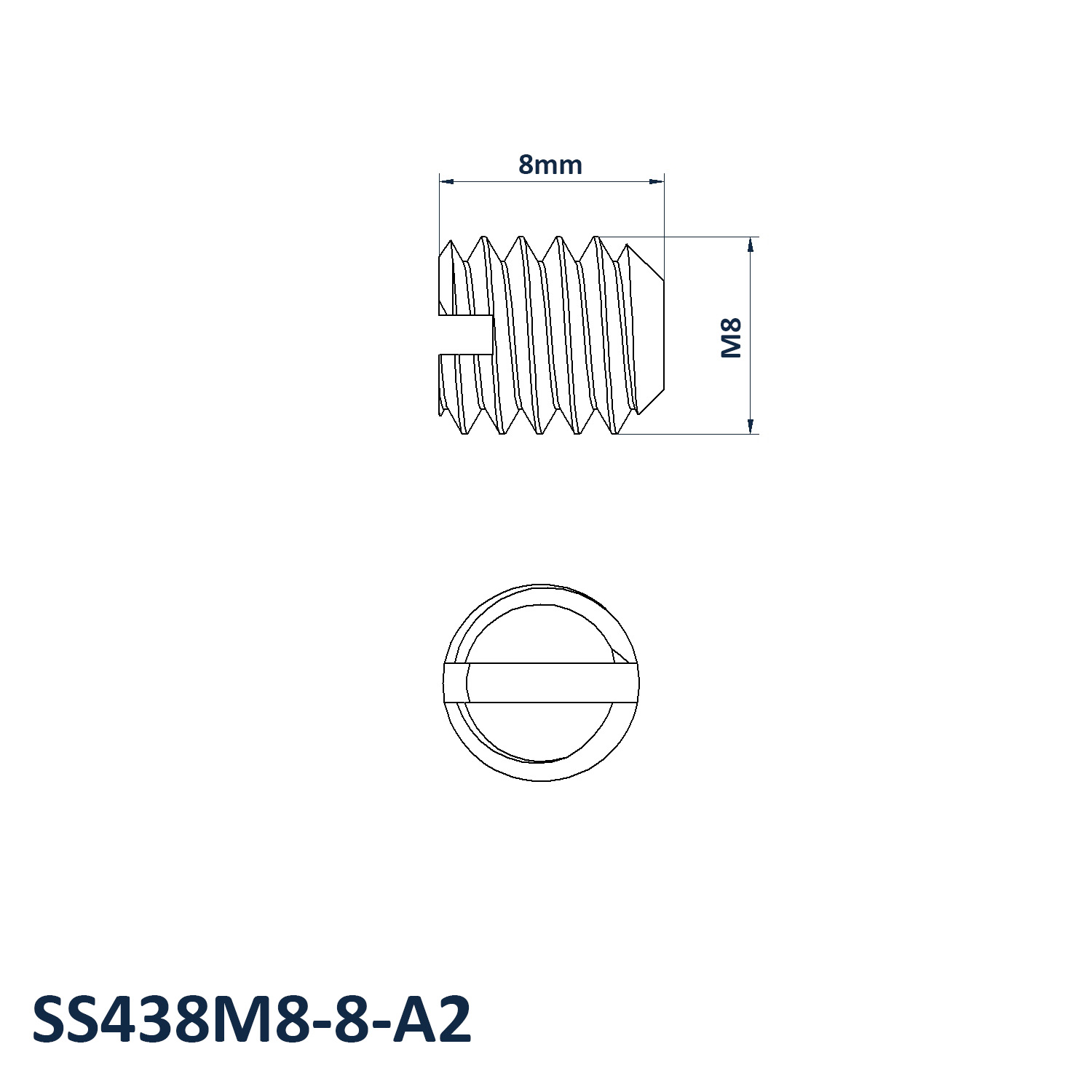

M8 Grub Screw Dimensions
- Thread Size: M8
- Thread Length: 8mm
- Pitch: 1.25mm
- End Type: Cup
- Drive: Slotted
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
Need help or buying in bulk?
Our team can advise on M8 engagement suitability and provide volume pricing for production quantities. Call 01233 713581.
