38.1mm Universal Open/Closed Bushing - 3.2mm Panel (26.9mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.68 | £0.81 |
| 250 - 499 | £0.62 | £0.74 |
| 500 - 999 | £0.56 | £0.67 |
| 1000 - 2499 | £0.50 | £0.60 |
| 2500 - 4999 | £0.44 | £0.53 |
| 5000 + | £0.40 | £0.48 |
Product Specification
| To Fit Hole Diameter | 38.1mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 26.9mm |
| Head Diameter | 40.1mm |
| Length | 10.7mm |
Frequently Bought Together
Total Price: £0.00

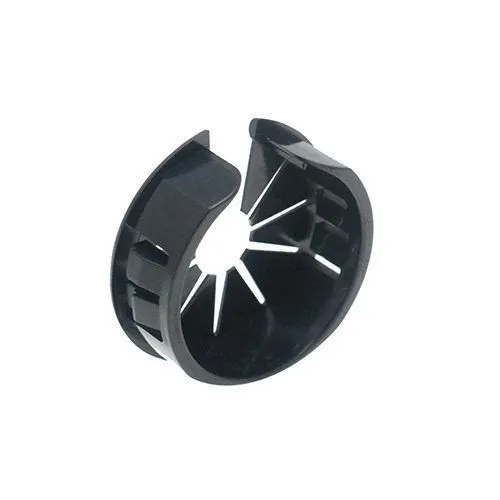

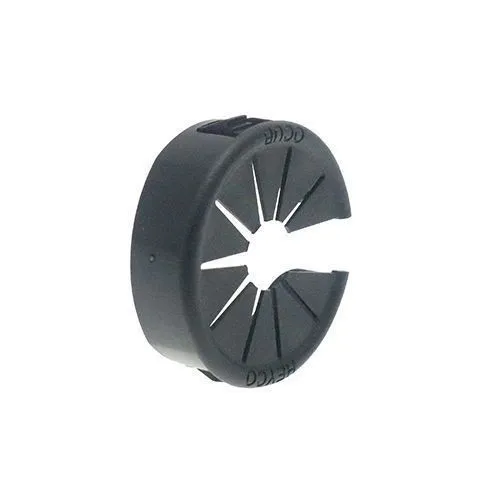

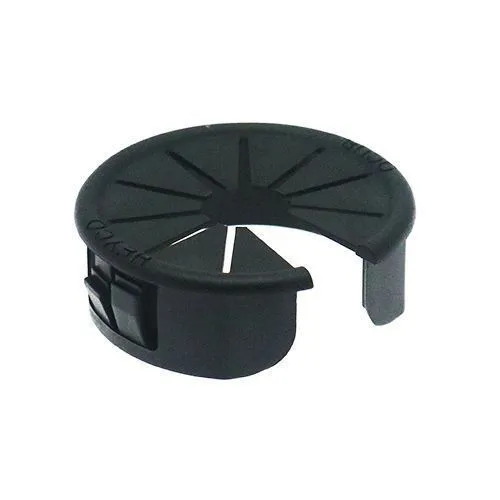

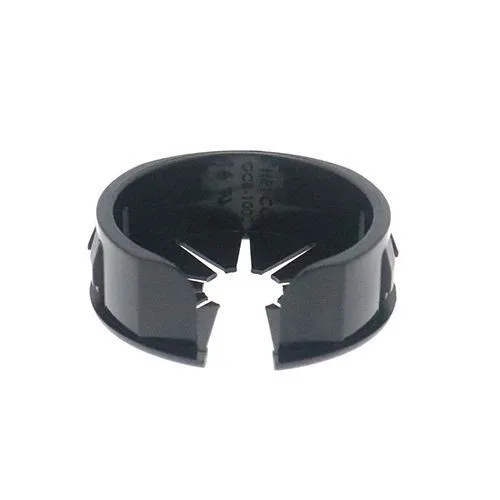

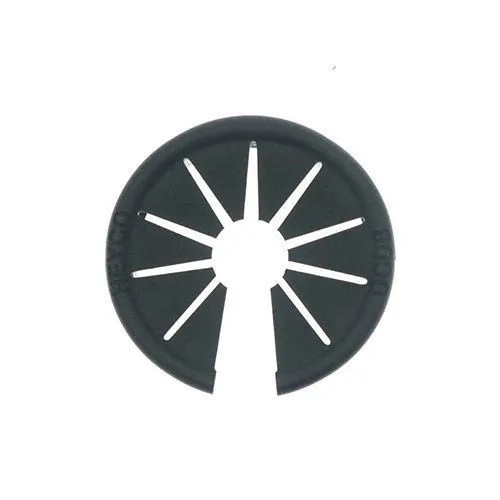

38.1mm Universal Open/Closed Bush | 26.9mm Max Cable | Black Nylon 66
This 38.1mm split nylon cable bush is suitable for cable diameters up to 26.9mm, providing a protective entry point for heavier wiring routes. The open/closed design lets the bush be installed after the cable has been positioned through the panel.
The black Nylon 66 body helps reduce cable wear where vibration or repeated movement could otherwise bring the insulation into contact with the panel edge. Its 40.1mm head diameter also creates a clean seated appearance after installation.
What Are Universal Open/Closed Bushes?
Split nylon cable bushes are commonly used on machinery panels and enclosure openings where cable protection is needed without disconnecting the wiring. The bush opens for side entry and closes around the cable before snapping into place.
Common Applications
- Industrial machinery wiring looms
- Large control enclosure openings
- Cable protection on service panels
- Automation equipment cable routes

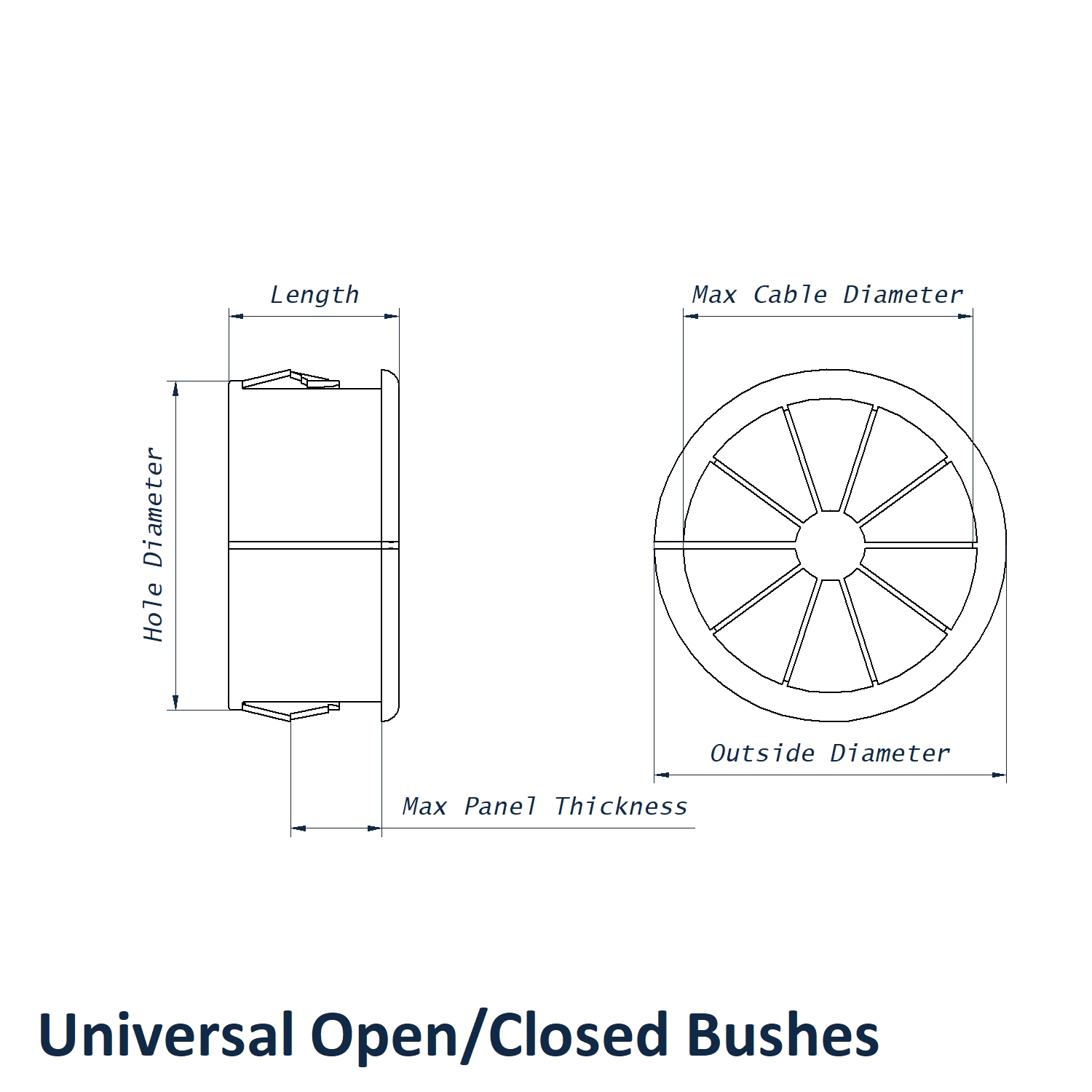

38.1mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 38.1mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 26.9mm
- Head Diameter: 40.1mm
- Length: 10.7mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These split nylon cable bush products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
To discuss this split nylon cable bush for machinery, automation or panel building use, call 01233 713581. The Vital Parts team can help with sizing advice and bulk order support.
