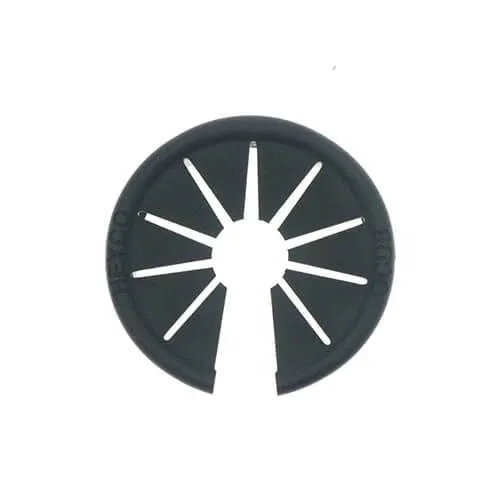

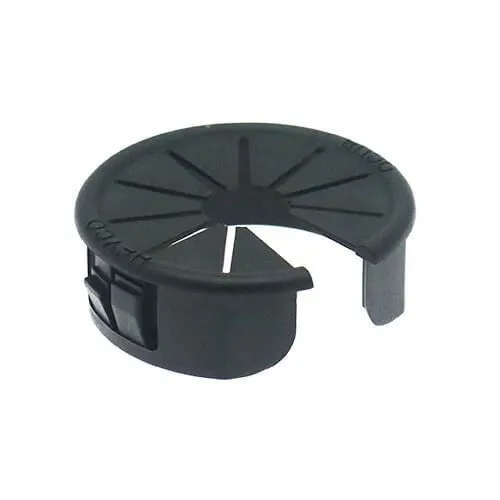

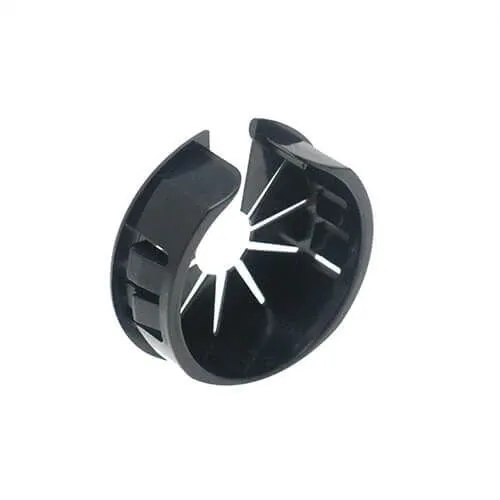

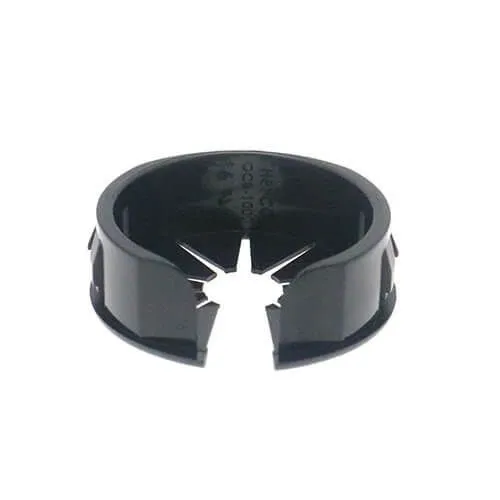

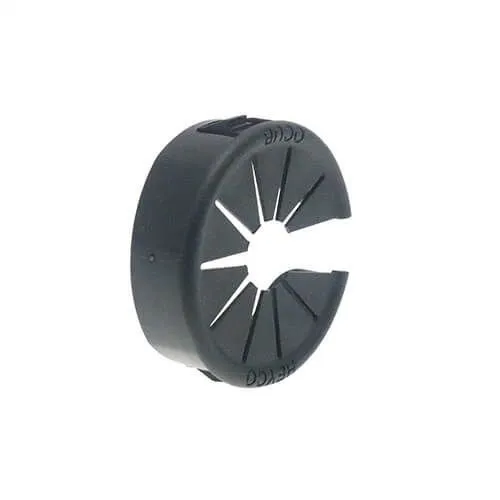

50.8mm Universal Open/Closed Bushing - 3.2mm Panel (41.7mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.86 | £1.03 |
| 250 - 499 | £0.78 | £0.94 |
| 500 - 999 | £0.71 | £0.85 |
| 1000 - 2499 | £0.63 | £0.76 |
| 2500 - 4999 | £0.57 | £0.68 |
| 5000 + | £0.51 | £0.61 |
Product Specification
| To Fit Hole Diameter | 50.8mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 41.7mm |
| Head Diameter | 53.9mm |
| Length | 10.7mm |
Frequently Bought Together
Total Price: £0.00
50.8mm Universal Open/Closed Bush | 41.7mm Max Cable | Black Nylon 66
Built for wider panel cut-outs, this 50.8mm open closed bushing protects cable routes up to 41.7mm and gives larger enclosures a tidy snap-fit cable entry point. The side-entry format is useful when the wiring assembly cannot be pulled back through a closed bush.
A 53.9mm head diameter and 10.7mm length give the part enough coverage for larger openings, while the black Nylon 66 construction provides a tough insulating finish. It is well suited to distribution cabinets, industrial housings and equipment with larger cable bundles.
What Are Universal Open/Closed Bushes?
Open closed bushings are split-body cable protection components that can be fitted around a cable and locked into a panel hole. They help reduce chafing, support the cable route and cover the raw edge of the aperture.
Common Applications
- Large distribution cabinet cable holes
- Industrial enclosure wiring routes
- Grouped cable protection points
- Heavy duty equipment panels

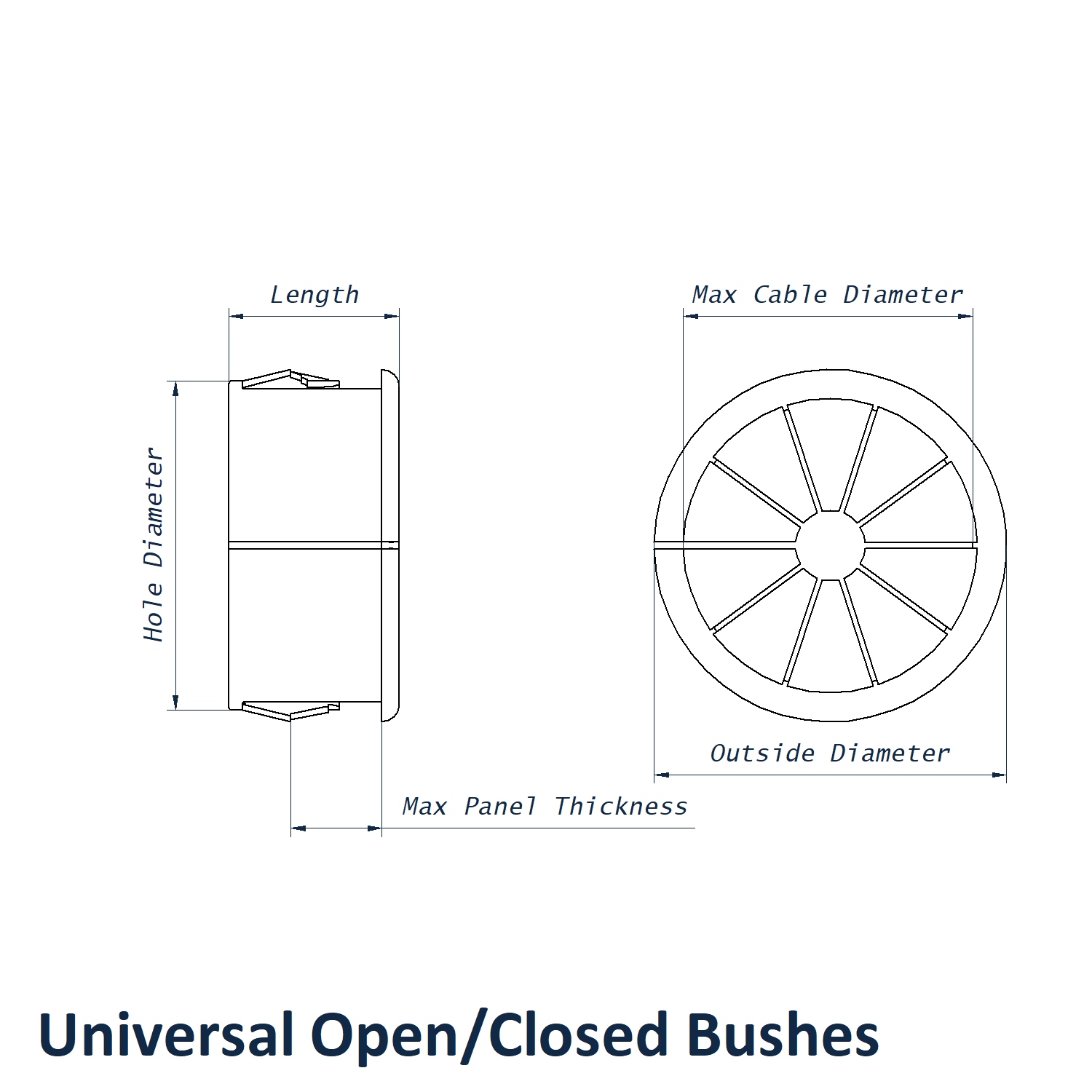

50.8mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 50.8mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 41.7mm
- Head Diameter: 53.9mm
- Length: 10.7mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These open closed bushing products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
For larger open closed bushing requirements, contact Vital Parts on 01233 713581. We can help confirm cable clearance, panel thickness suitability and order quantities for ongoing electrical projects.
