63.5mm Universal Open/Closed Bushing - 6.4mm Panel (43.2mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.62 | £1.94 |
| 250 - 499 | £1.45 | £1.74 |
| 500 - 999 | £1.34 | £1.61 |
| 1000 - 2499 | £1.24 | £1.49 |
| 2500 + | £1.15 | £1.38 |
Product Specification
| To Fit Hole Diameter | 63.5mm |
| Max Panel Thickness | 6.4mm |
| Max Cable Diameter | 43.2mm |
| Head Diameter | 66.0mm |
| Length | 18.3mm |
Frequently Bought Together
Total Price: £0.00

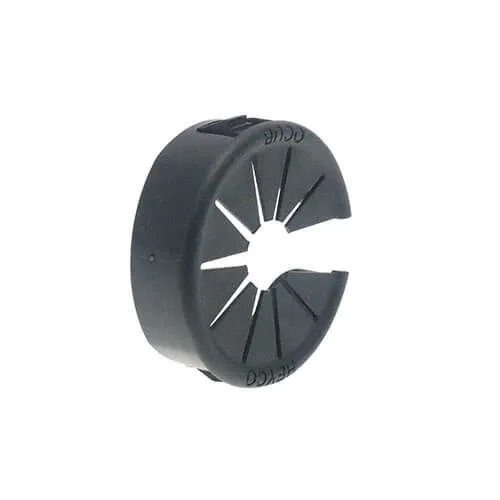

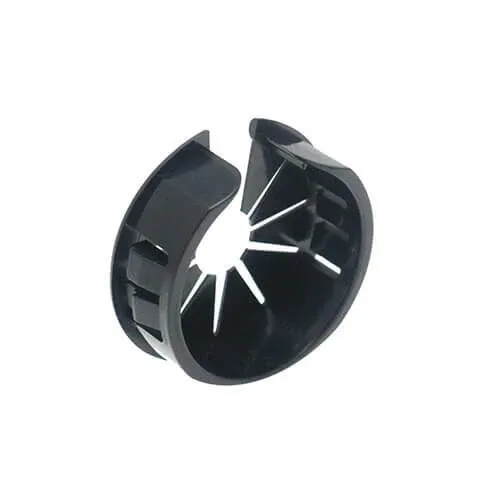

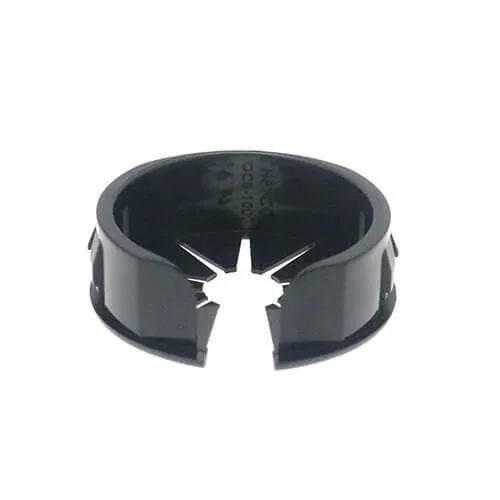

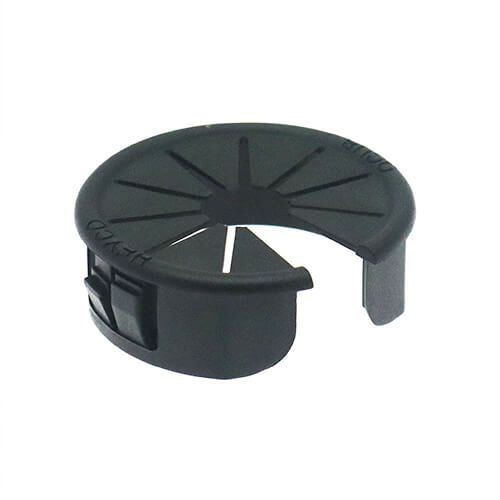

63.5mm Universal Open/Closed Bush | 43.2mm Max Cable | Black Nylon 66
This 63.5mm universal cable bushing is the largest option in this uploaded range, supporting cables up to 43.2mm and panels up to 6.4mm. Its open/closed body provides side-entry cable protection for heavier cable bundles and larger equipment apertures.
The 18.3mm length and 66.0mm head diameter help create a more substantial seated profile for larger cut-outs. Manufactured from black Nylon 66, it provides an insulating barrier that helps reduce abrasion, vibration and contact between the cable and the panel edge.
What Are Universal Open/Closed Bushes?
Universal cable bushings are used to protect cables passing through panel openings. In larger sizes, the open/closed design is especially useful because it allows the bush to be installed around thick cables or grouped wiring without disconnecting the cable run.
Common Applications
- Heavy cable bundle protection
- Large electrical cabinet apertures
- Plant room equipment wiring
- Industrial power and control panels

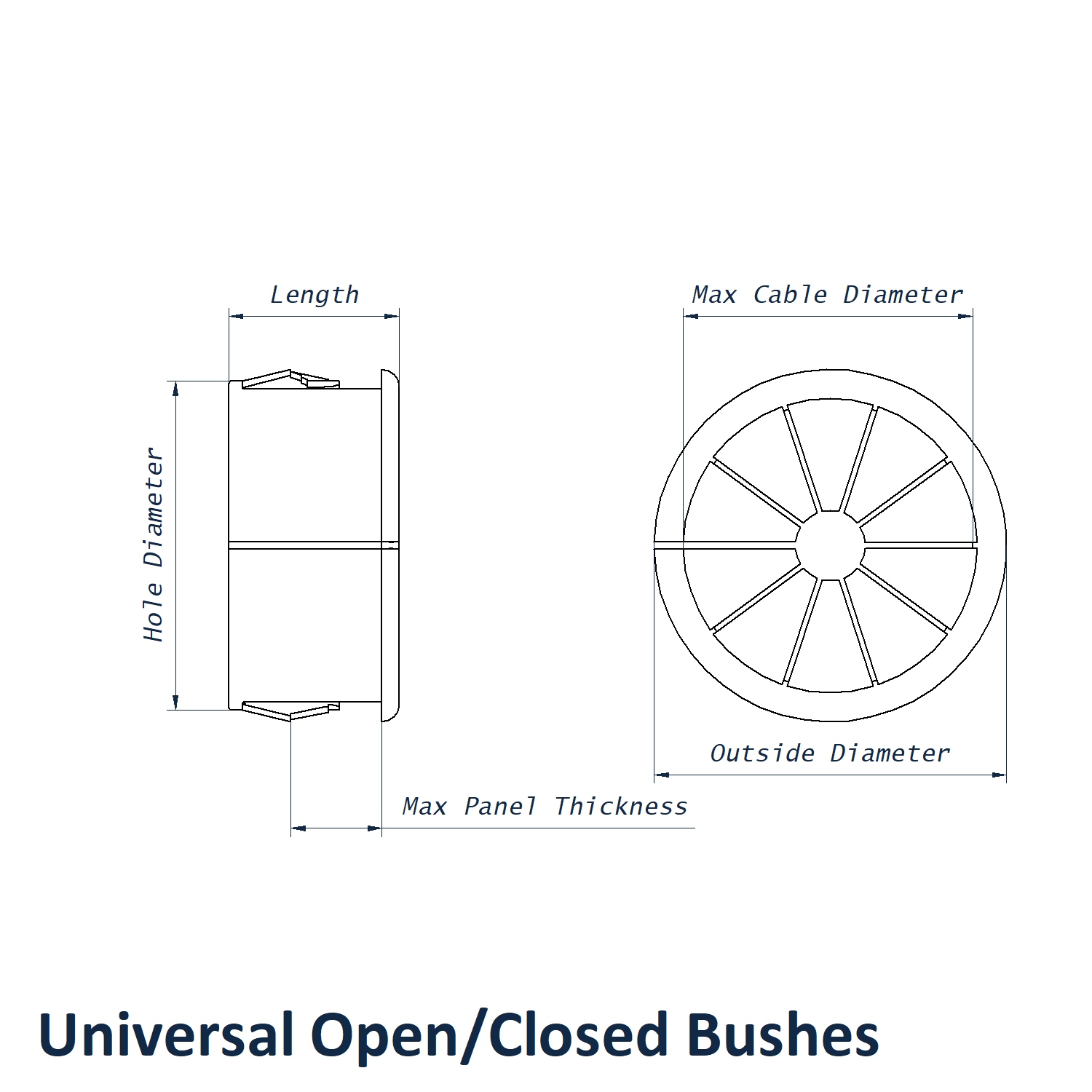

63.5mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 63.5mm
- Max Panel Thickness: 6.4mm
- Max Cable Diameter: 43.2mm
- Head Diameter: 66.0mm
- Length: 18.3mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These universal cable bushing products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
If you are working with larger cable bundles or thicker panels, the Vital Parts team can help check fit before ordering. Call 01233 713581 for product support, stock guidance and trade quantity enquiries.
