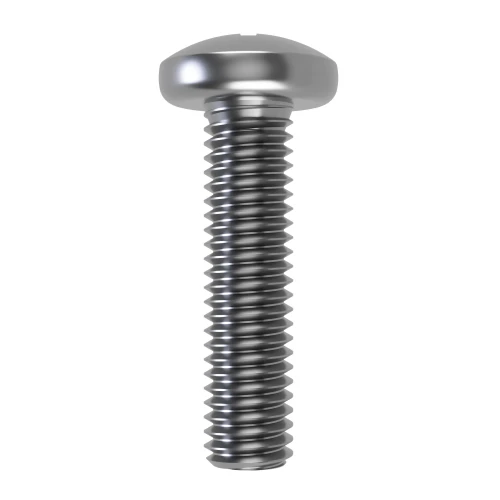

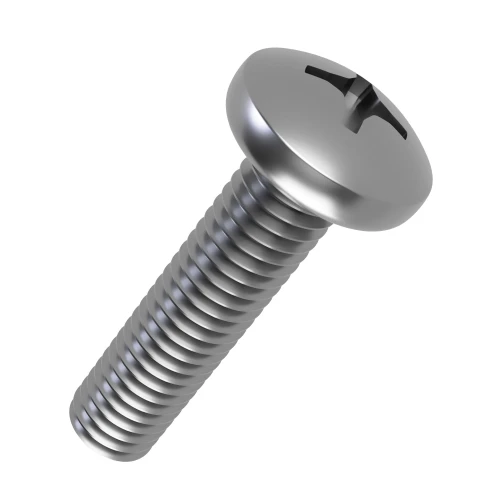

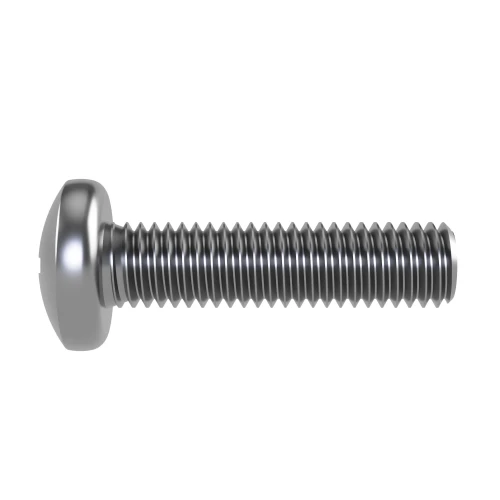

M5 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.81 | £2.17 |
| 10 - 24 | £1.45 | £1.74 |
| 25 - 49 | £1.08 | £1.30 |
| 50 - 99 | £0.91 | £1.09 |
| 100 - 499 | £0.82 | £0.98 |
| 500 - 999 | £0.72 | £0.87 |
| 1000 + | £0.54 | £0.65 |
£2.17 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 100mm |
| Material | A4 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
A M5 Phillips pan head screw in Marine Grade A4 Stainless Steel, this 100mm fastener suits steel bracket assemblies. Its #2 crosshead recess is tightened using the matching Phillips driver and the screw can be removed again when servicing the assembly.
What Are Phillips Pan Head Machine Screws?
A Phillips screw of this type has a machine thread along its shaft and a rounded head designed for conventional crosshead screwdriver access. The specified 0.80mm pitch defines the matching internal thread and its DIN 7985H designation identifies the screw form. For other sizes and material choices, our panhead screws are listed by their individual thread and length specifications.
Common Applications
- Control Panels: Fastening removable panels to enclosures with prepared M5 female threads.
- Mounting Brackets: Joining brackets and fittings using a matching M5 threaded hole or nut.
- Instrumentation: Attaching casings or fittings to suitably threaded instrument frames.
- Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.

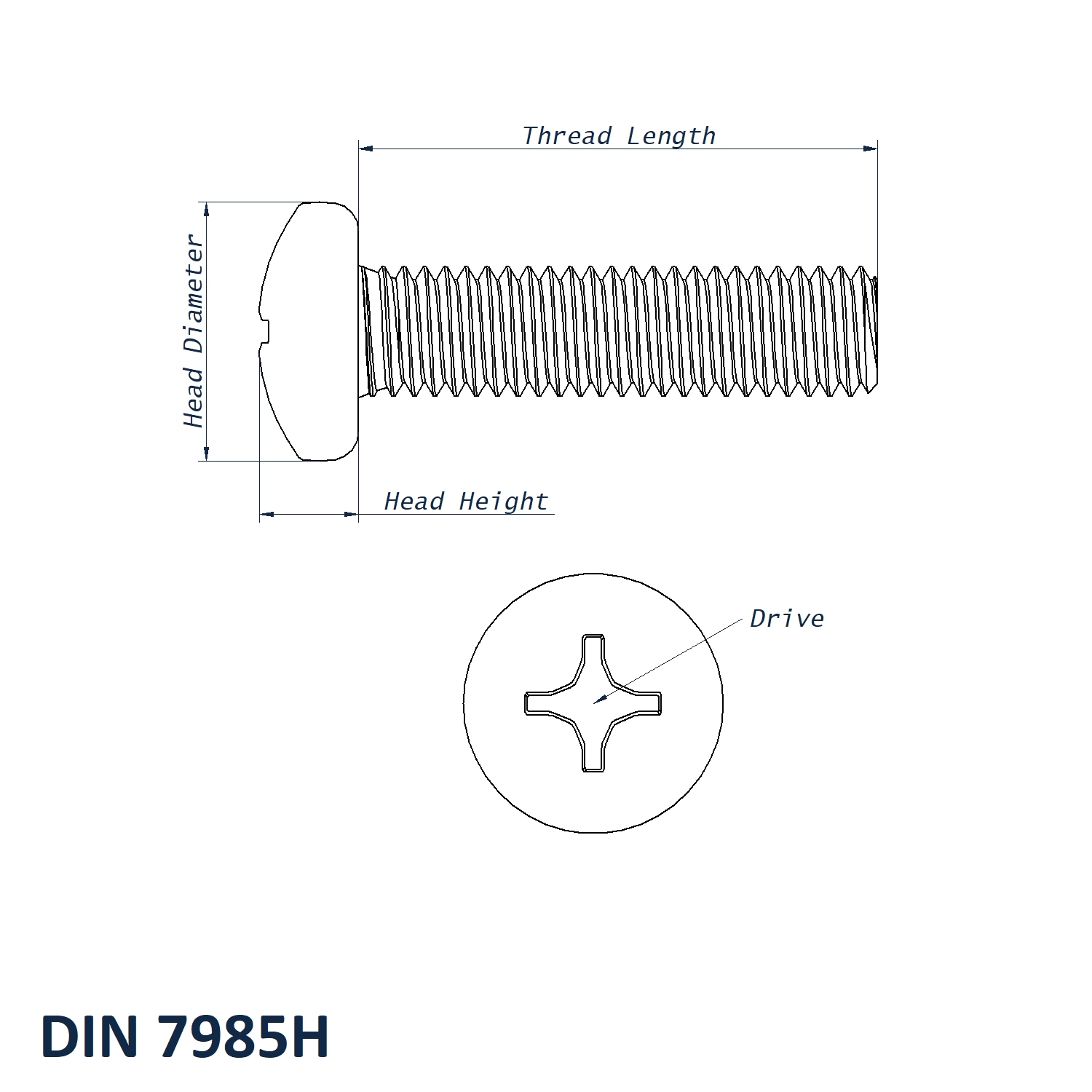

M5 x 100mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 100mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A4 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The round pan head remains accessible after fitting for adjustment or removal.
- The M5 thread and 0.80mm pitch provide a defined metric fit for compatible components.
- The DIN 7985H designation supports identification of the correct screw pattern.
- The specified Marine Grade A4 Stainless Steel can be chosen to match the assembly’s material requirements.
Explore our metric Phillips screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
