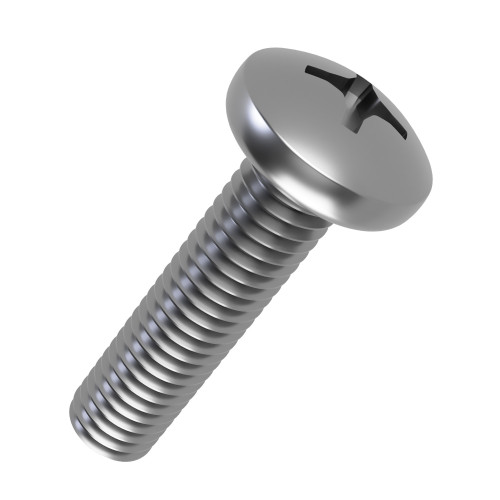

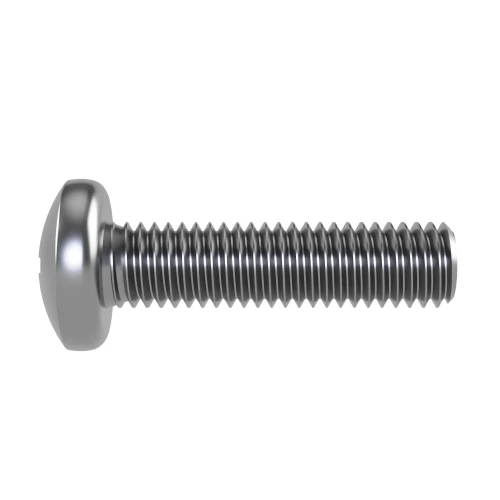

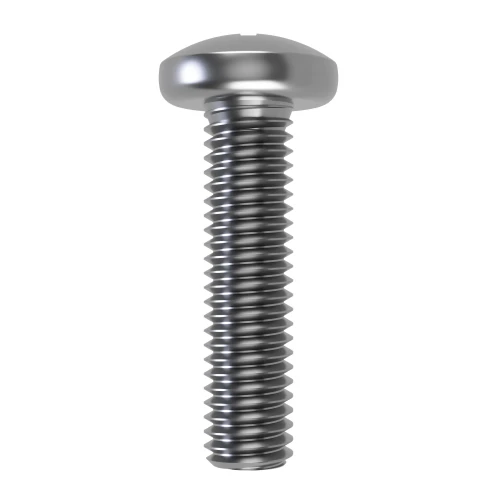

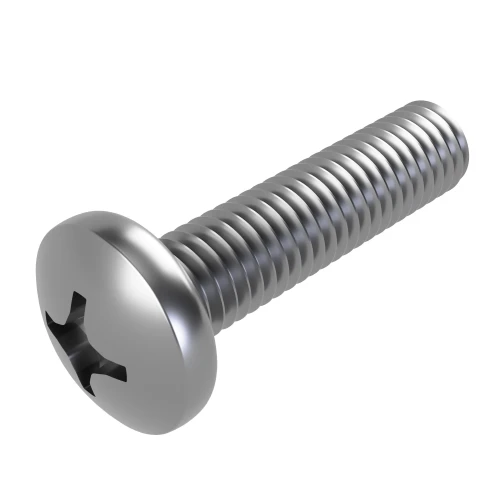

M5 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.66 | £0.79 |
| 10 - 24 | £0.53 | £0.63 |
| 25 - 49 | £0.42 | £0.50 |
| 50 - 99 | £0.32 | £0.38 |
| 100 - 499 | £0.21 | £0.25 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 + | £0.11 | £0.13 |
£0.79 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 14mm |
| Material | A2 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
This M5 x 14mm A2 Stainless Steel machine screw combines a rounded pan head with a Phillips cross recess. The #2 drive accepts the corresponding screwdriver tip, while the 0.80mm pitch is intended for a compatible metric threaded connection in machinery covers and mounting plates.
What Are Phillips Pan Head Machine Screws?
Phillips pan head machine screws are metric threaded fasteners with a rounded head and cross-shaped drive recess. A correctly sized Phillips screwdriver engages the recess to tighten the screw into an internally threaded part or a compatible nut. The M5 thread and 0.80mm pitch should be matched to the mating component. For other sizes and material choices, our machine screws are listed by their individual thread and length specifications.
Common Applications
- Control Panels: Fastening removable panels to enclosures with prepared M5 female threads.
- Mounting Brackets: Joining brackets and fittings using a matching M5 threaded hole or nut.
- Instrumentation: Attaching casings or fittings to suitably threaded instrument frames.
- Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.

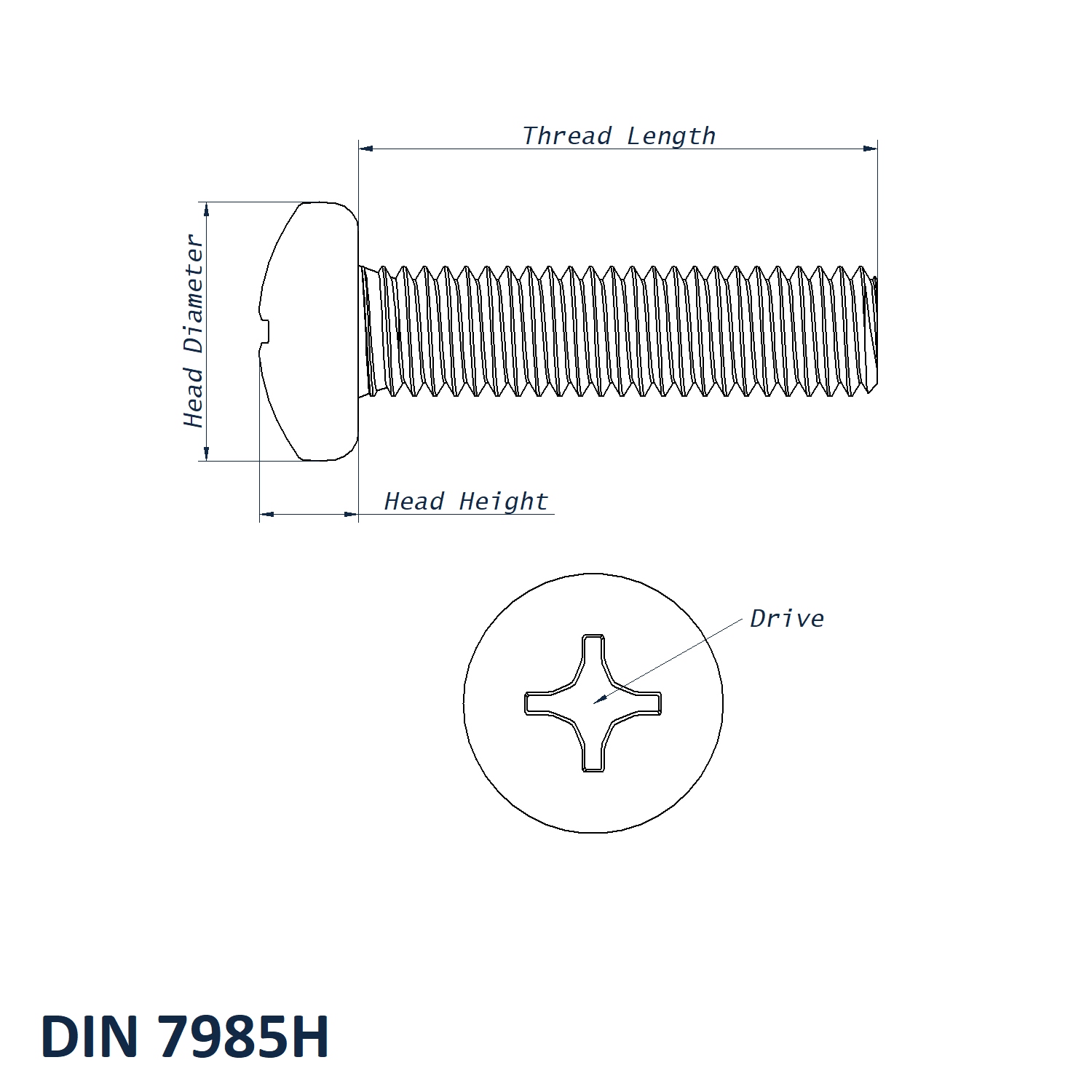

M5 x 14mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 14mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A2 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- A removable screw connection supports access to equipment during maintenance.
- The M5 machine thread works with matching tapped holes or nuts.
- The #2 Phillips recess allows tightening using a matching crosshead screwdriver or bit.
- The 14mm length lets this fastener be selected for the intended joint depth.
Explore our DIN 7985H machine screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
