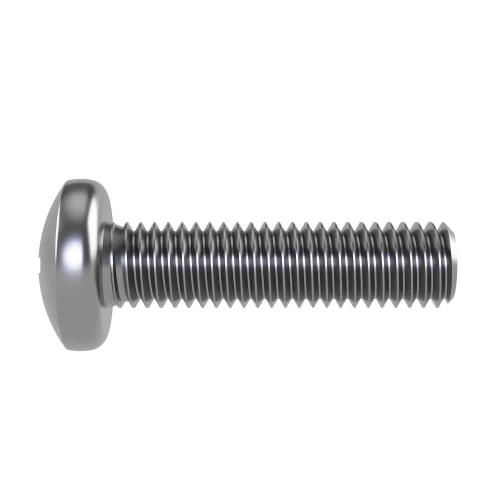

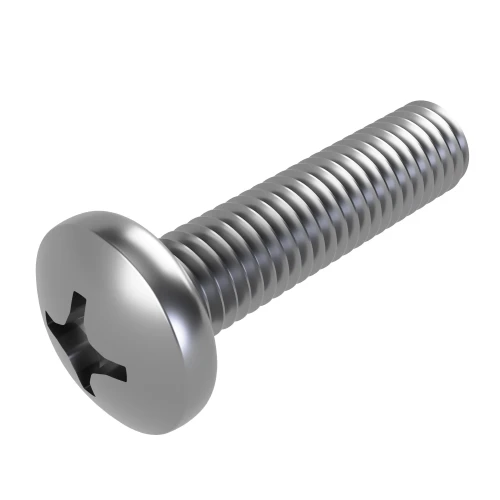

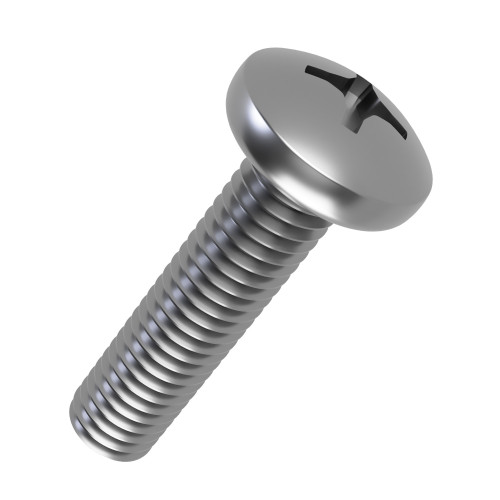

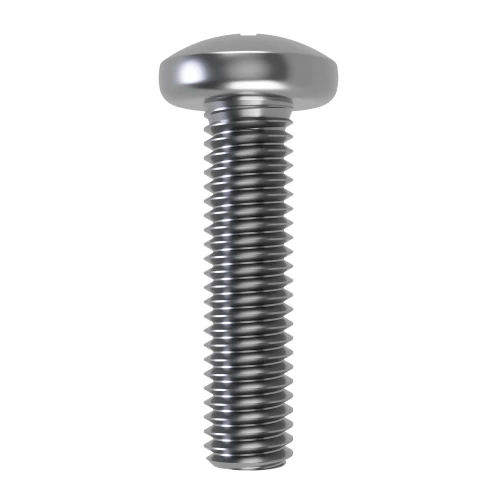

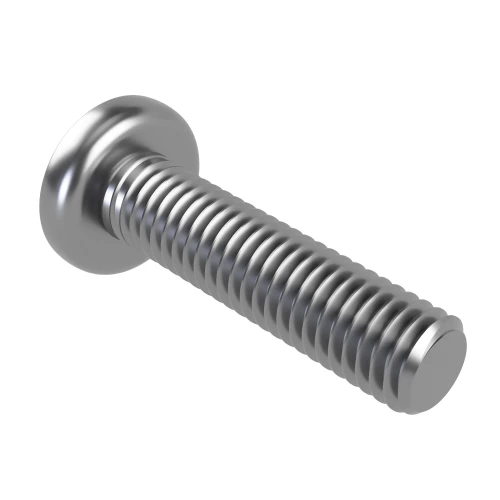

M5 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.58 | £0.70 |
| 10 - 24 | £0.47 | £0.56 |
| 25 - 49 | £0.38 | £0.45 |
| 50 - 99 | £0.28 | £0.34 |
| 100 - 499 | £0.18 | £0.22 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 + | £0.09 | £0.11 |
£0.70 / each
.png)

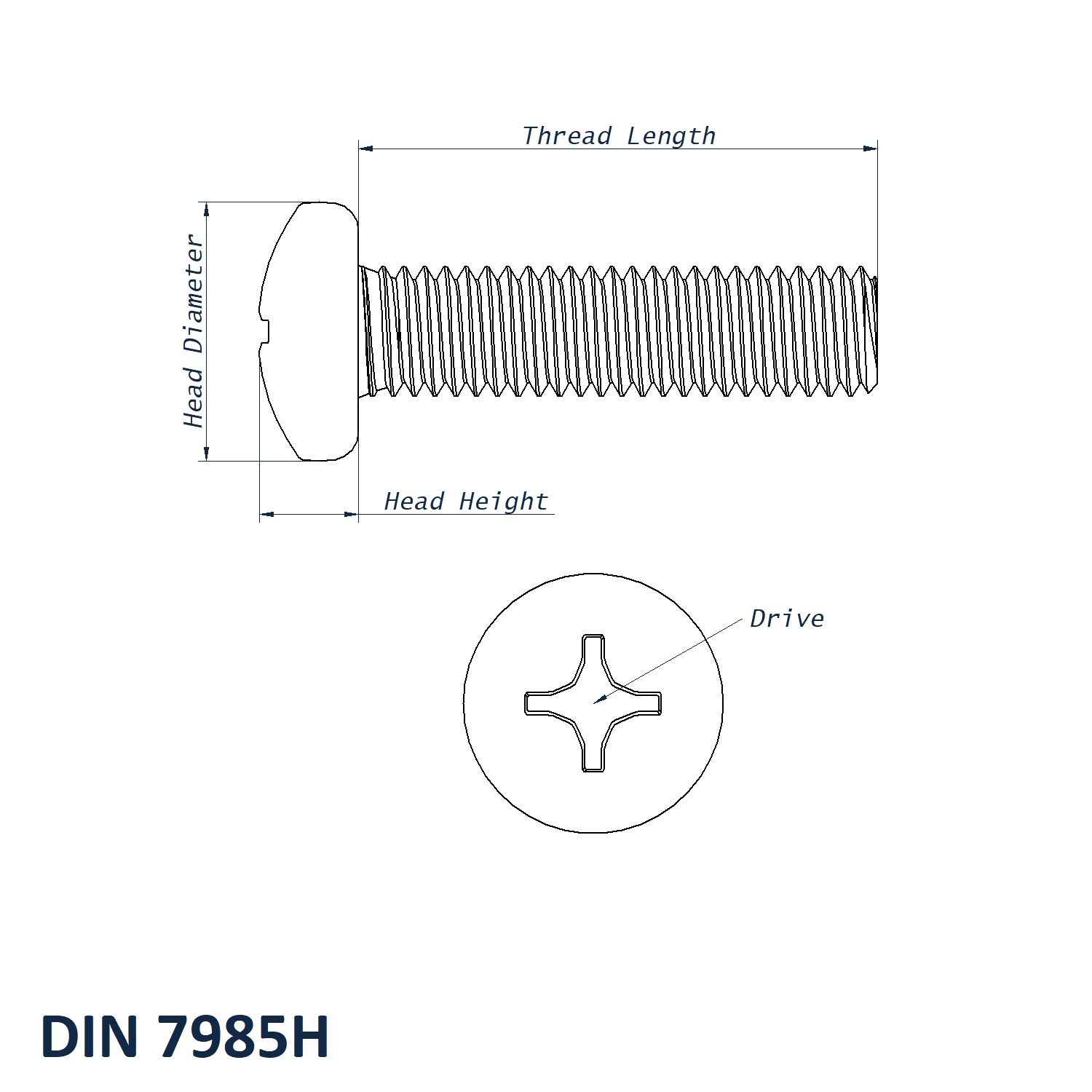

Product Specification
| Thread Size | M5 |
| Length | 16mm |
| Material | A2 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
A M5 Phillips pan head screw in A2 Stainless Steel, this 16mm fastener suits machinery covers and mounting plates. Its #2 crosshead recess is tightened using the matching Phillips driver and the screw can be removed again when servicing the assembly.
What Are Phillips Pan Head Machine Screws?
A Phillips head machine screw uses a cross-recessed pan head rather than a countersunk head. Its head stays proud of the fitted surface and the #2 drive must be matched to a suitable Phillips screwdriver bit. This M5 version follows DIN 7985H. For other sizes and material choices, our metric pan head screws are listed by their individual thread and length specifications.
Common Applications
- Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.
- Workshop Fixtures: Installing removable brackets and small metal accessories.
- Component Mounting: Securing mounts to tapped holes with the correct 0.80mm thread pitch.
- Control Panels: Fastening removable panels to enclosures with prepared M5 female threads.
M5 x 16mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 16mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A2 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The 3.95mm pan head height helps assess available clearance above the fitting.
- The #2 drive designation helps select the appropriate Phillips screwdriver size.
- The precise 0.80mm thread pitch helps avoid mismatching metric fasteners.
- The 10mm pan head gives a raised bearing surface rather than a flush countersunk finish.
Explore our metric Phillips screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
