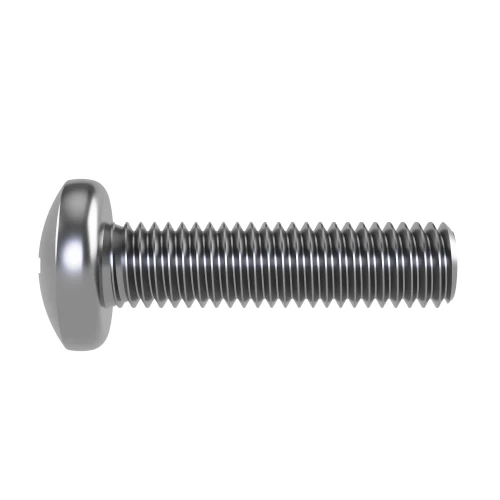

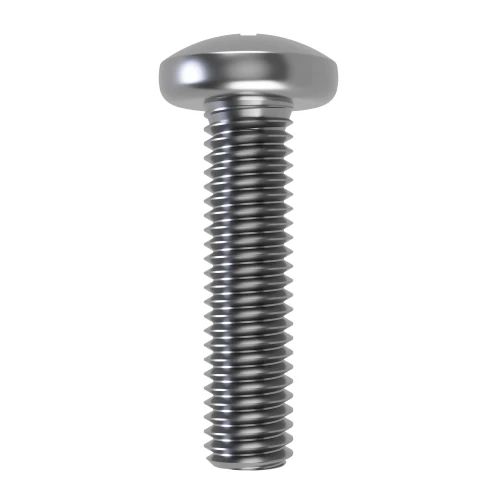

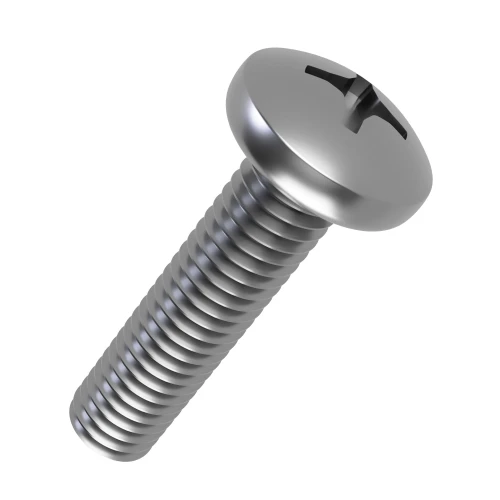

M5 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.90 | £1.08 |
| 10 - 24 | £0.72 | £0.86 |
| 25 - 49 | £0.57 | £0.69 |
| 50 - 99 | £0.43 | £0.52 |
| 100 - 499 | £0.29 | £0.35 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 + | £0.14 | £0.17 |
£1.08 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 14mm |
| Material | A4 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
For maintenance replacement fastenings, this 14mm Phillips head screw provides a 10mm pan head that remains above the fastening surface. Manufactured from Marine Grade A4 Stainless Steel, it uses a #2 Phillips drive for installation into a matching threaded component.
What Are Phillips Pan Head Machine Screws?
Phillips pan head machine screws are metric threaded fasteners with a rounded head and cross-shaped drive recess. A correctly sized Phillips screwdriver engages the recess to tighten the screw into an internally threaded part or a compatible nut. The M5 thread and 0.80mm pitch should be matched to the mating component. Phillips and Pozidriv drive profiles are different, so a correctly matching Phillips screwdriver should be used rather than a Pozi bit. For other sizes and material choices, our panhead screws are listed by their individual thread and length specifications.
Common Applications
- Equipment Assembly: Making detachable connections between components with matching machine threads.
- Electrical Enclosures: Fixing covers and internal hardware with a matching metric thread.
- Maintenance Work: Replacing a worn DIN 7985H screw with an equivalent size and drive.
- Access Panels: Keeping the rounded head accessible when a panel requires routine removal.

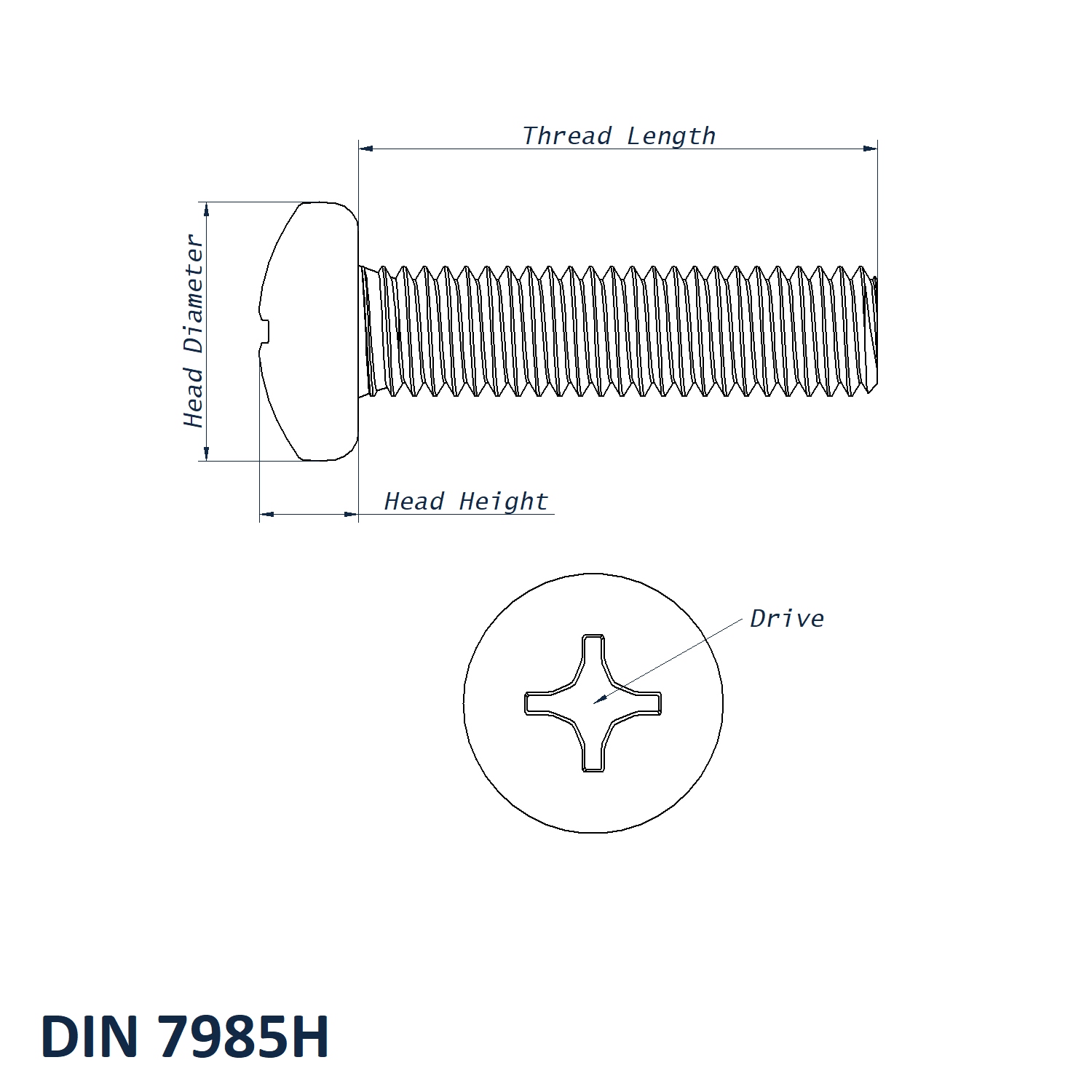

M5 x 14mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 14mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A4 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The #2 Phillips recess allows tightening using a matching crosshead screwdriver or bit.
- The 14mm length lets this fastener be selected for the intended joint depth.
- A removable screw connection supports access to equipment during maintenance.
- The M5 machine thread works with matching tapped holes or nuts.
Explore our crosshead pan head machine screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
