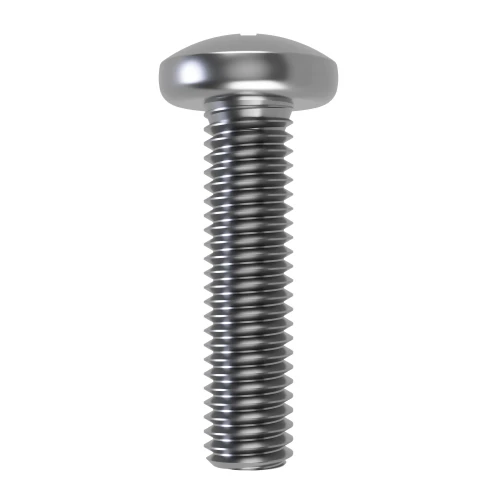

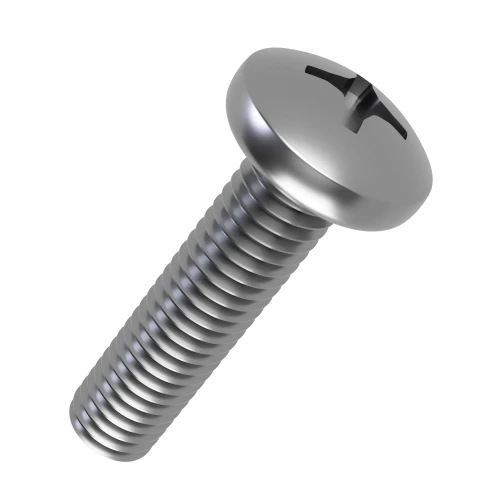

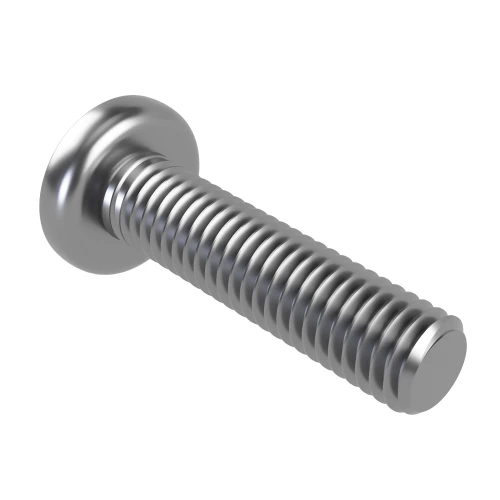

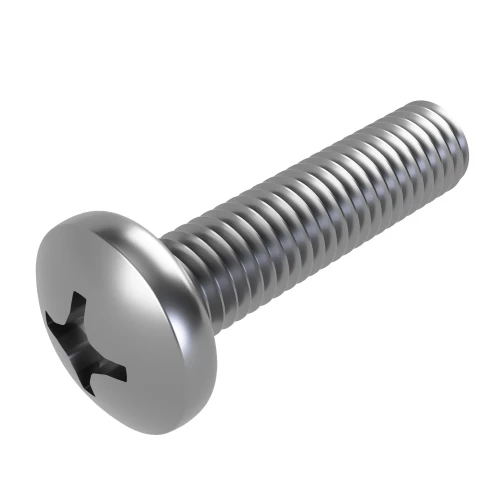

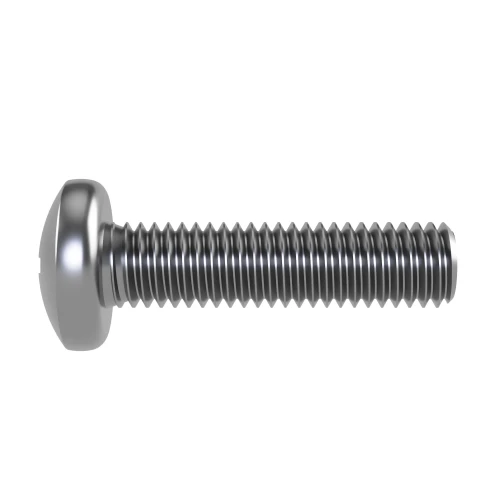

M5 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.53 | £0.63 |
| 10 - 24 | £0.42 | £0.50 |
| 25 - 49 | £0.33 | £0.40 |
| 50 - 99 | £0.25 | £0.30 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.12 | £0.15 |
| 1000 + | £0.08 | £0.10 |
£0.63 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 12mm |
| Material | A2 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 12mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
With a 10mm pan head and 3.95mm head height, this M5 x 12mm screw provides an accessible drive above the workpiece. The A2 Stainless Steel construction and #2 Phillips recess make it suitable for machinery covers and mounting plates.
What Are Phillips Pan Head Machine Screws?
A Phillips screw of this type has a machine thread along its shaft and a rounded head designed for conventional crosshead screwdriver access. The specified 0.80mm pitch defines the matching internal thread and its DIN 7985H designation identifies the screw form. For other sizes and material choices, our metric pan head screws are listed by their individual thread and length specifications.
Common Applications
- Equipment Assembly: Making detachable connections between components with matching machine threads.
- Electrical Enclosures: Fixing covers and internal hardware with a matching metric thread.
- Maintenance Work: Replacing a worn DIN 7985H screw with an equivalent size and drive.
- Access Panels: Keeping the rounded head accessible when a panel requires routine removal.

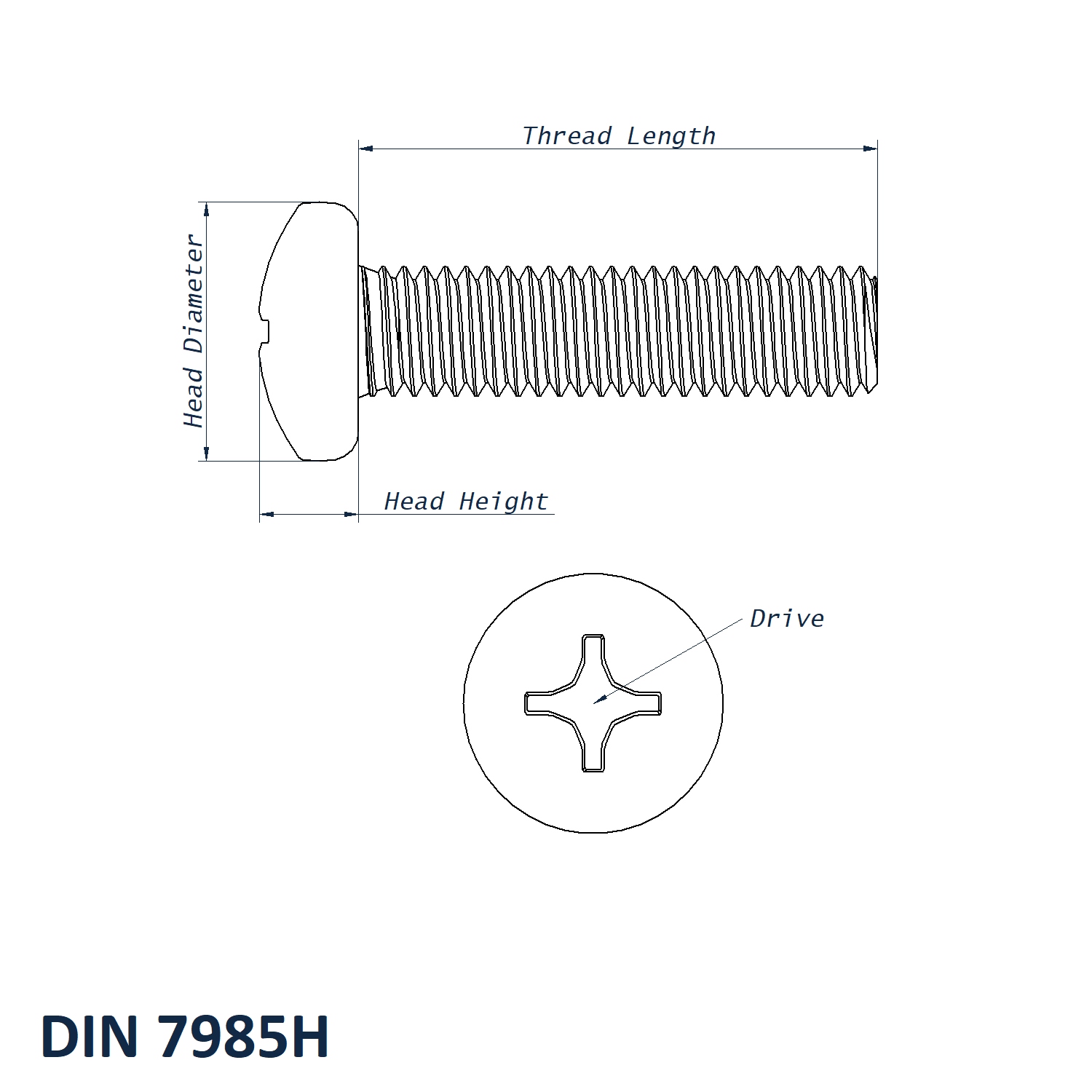

M5 x 12mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 12mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A2 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The 12mm length lets this fastener be selected for the intended joint depth.
- A removable screw connection supports access to equipment during maintenance.
- The M5 machine thread works with matching tapped holes or nuts.
- The #2 Phillips recess allows tightening using a matching crosshead screwdriver or bit.
Explore our Phillips drive pan head screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
