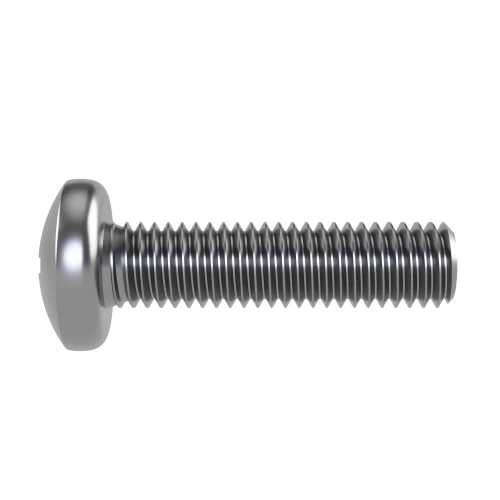

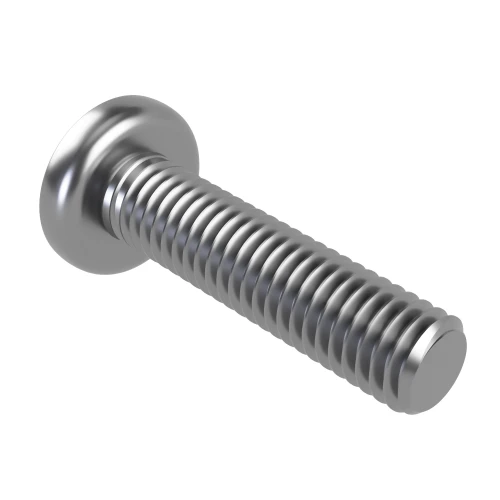

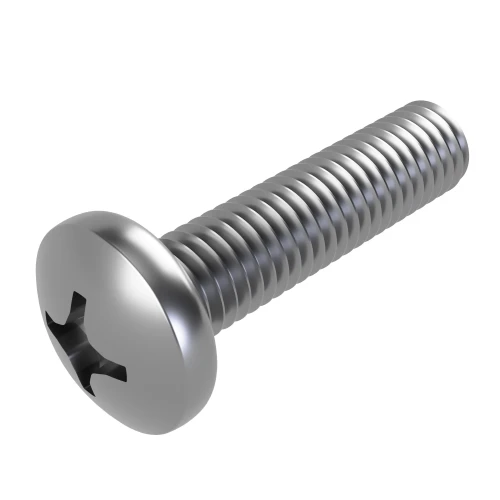

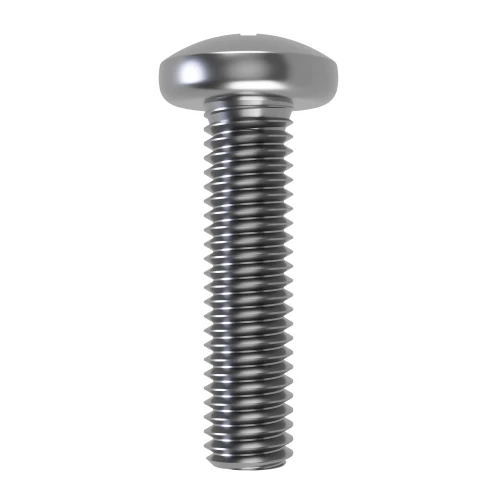

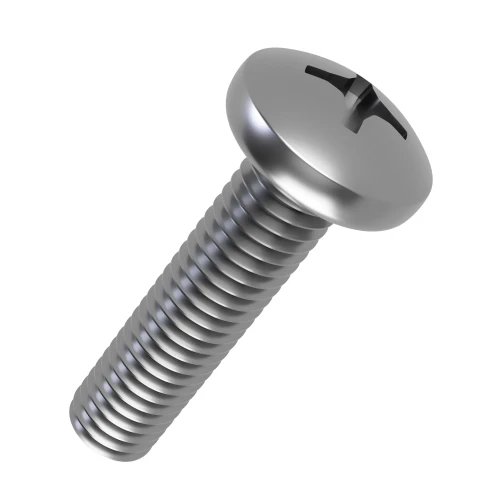

M5 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.13 | £1.36 |
| 10 - 24 | £0.90 | £1.08 |
| 25 - 49 | £0.68 | £0.81 |
| 50 - 99 | £0.57 | £0.68 |
| 100 - 499 | £0.51 | £0.61 |
| 500 - 999 | £0.45 | £0.54 |
| 1000 + | £0.34 | £0.41 |
£1.36 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 100mm |
| Material | A2 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 100mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
For industrial enclosure panels, this 100mm Phillips head screw provides a 10mm pan head that remains above the fastening surface. Manufactured from A2 Stainless Steel, it uses a #2 Phillips drive for installation into a matching threaded component. Its pan head is driven by a Phillips head screwdriver with the specified #2 tip size.
What Are Phillips Pan Head Machine Screws?
These pan head screws form removable threaded joints in metal and other components with prepared metric threads. Unlike self-tapping screws they rely on a matching internal thread or nut. This product has a M5 thread and #2 Phillips head recess. For other sizes and material choices, our Phillips screw are listed by their individual thread and length specifications.
Common Applications
- Access Panels: Keeping the rounded head accessible when a panel requires routine removal.
- Assembly Frames: Connecting compatible parts with an appropriately sized nut and clearance hole.
- Machine Covers: Securing service covers where the pan head remains accessible for later removal.
- Equipment Assembly: Making detachable connections between components with matching machine threads.

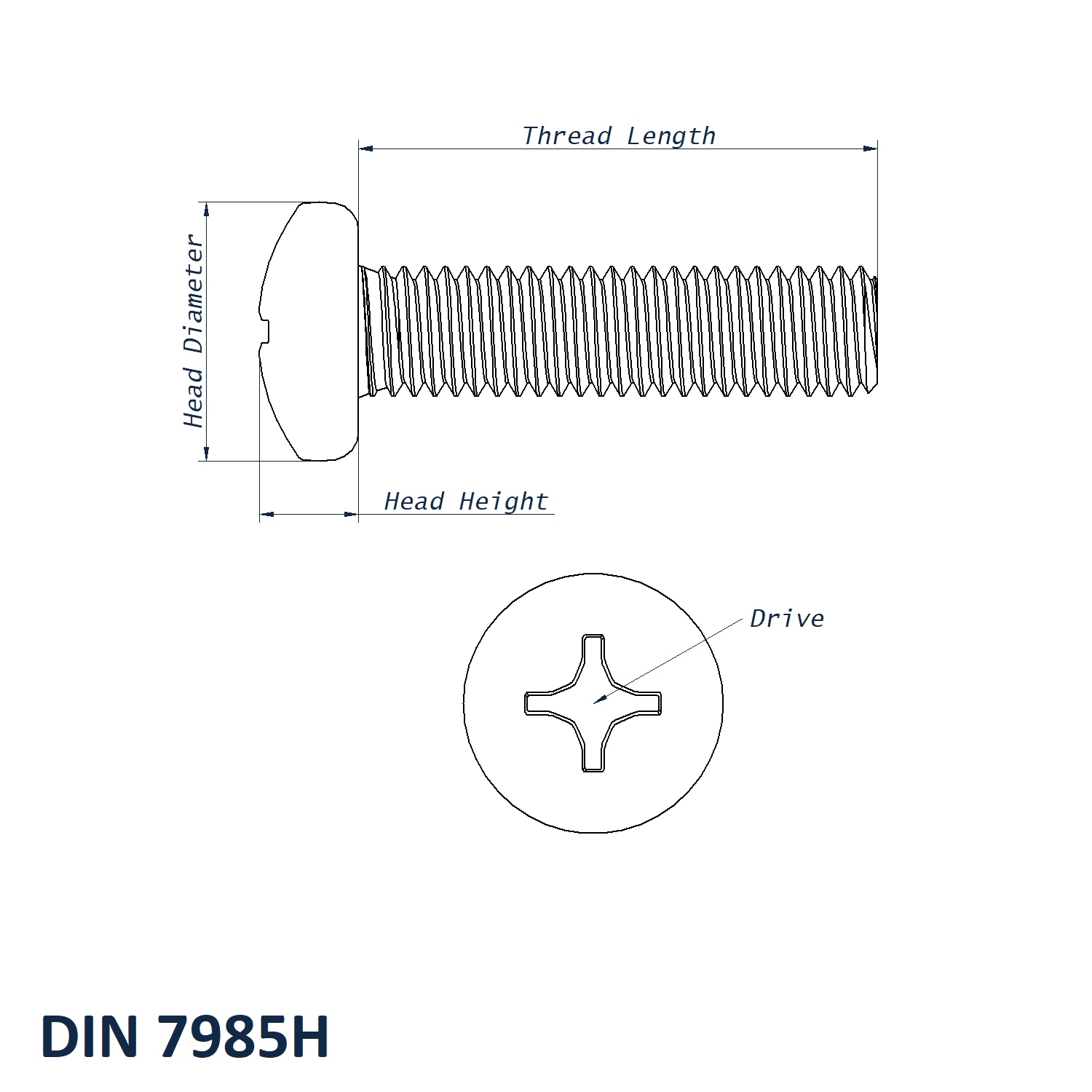

M5 x 100mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 100mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A2 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The 3.95mm pan head height helps assess available clearance above the fitting.
- The #2 drive designation helps select the appropriate Phillips screwdriver size.
- The precise 0.80mm thread pitch helps avoid mismatching metric fasteners.
- The 10mm pan head gives a raised bearing surface rather than a flush countersunk finish.
Explore our crosshead pan head machine screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
