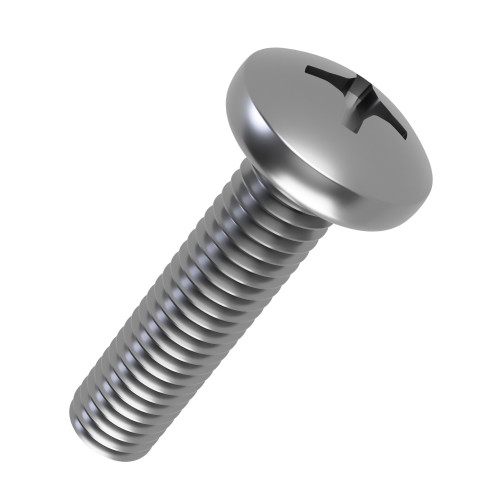

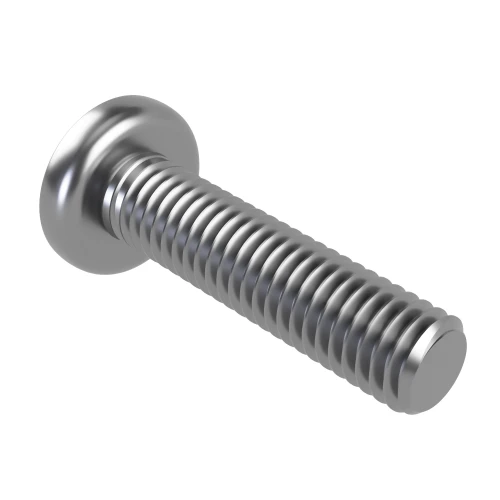

M5 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.89 | £1.07 |
| 10 - 24 | £0.71 | £0.85 |
| 25 - 49 | £0.57 | £0.68 |
| 50 - 99 | £0.42 | £0.51 |
| 100 - 499 | £0.28 | £0.34 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 + | £0.14 | £0.17 |
£1.07 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 16mm |
| Material | A4 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 16mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
With a 10mm pan head and 3.95mm head height, this M5 x 16mm screw provides an accessible drive above the workpiece. The Marine Grade A4 Stainless Steel construction and #2 Phillips recess make it suitable for steel bracket assemblies.
What Are Phillips Pan Head Machine Screws?
A Phillips head machine screw uses a cross-recessed pan head rather than a countersunk head. Its head stays proud of the fitted surface and the #2 drive must be matched to a suitable Phillips screwdriver bit. This M5 version follows DIN 7985H. For other sizes and material choices, our Phillips drive screws are listed by their individual thread and length specifications.
Common Applications
- Access Panels: Keeping the rounded head accessible when a panel requires routine removal.
- Assembly Frames: Connecting compatible parts with an appropriately sized nut and clearance hole.
- Machine Covers: Securing service covers where the pan head remains accessible for later removal.
- Equipment Assembly: Making detachable connections between components with matching machine threads.

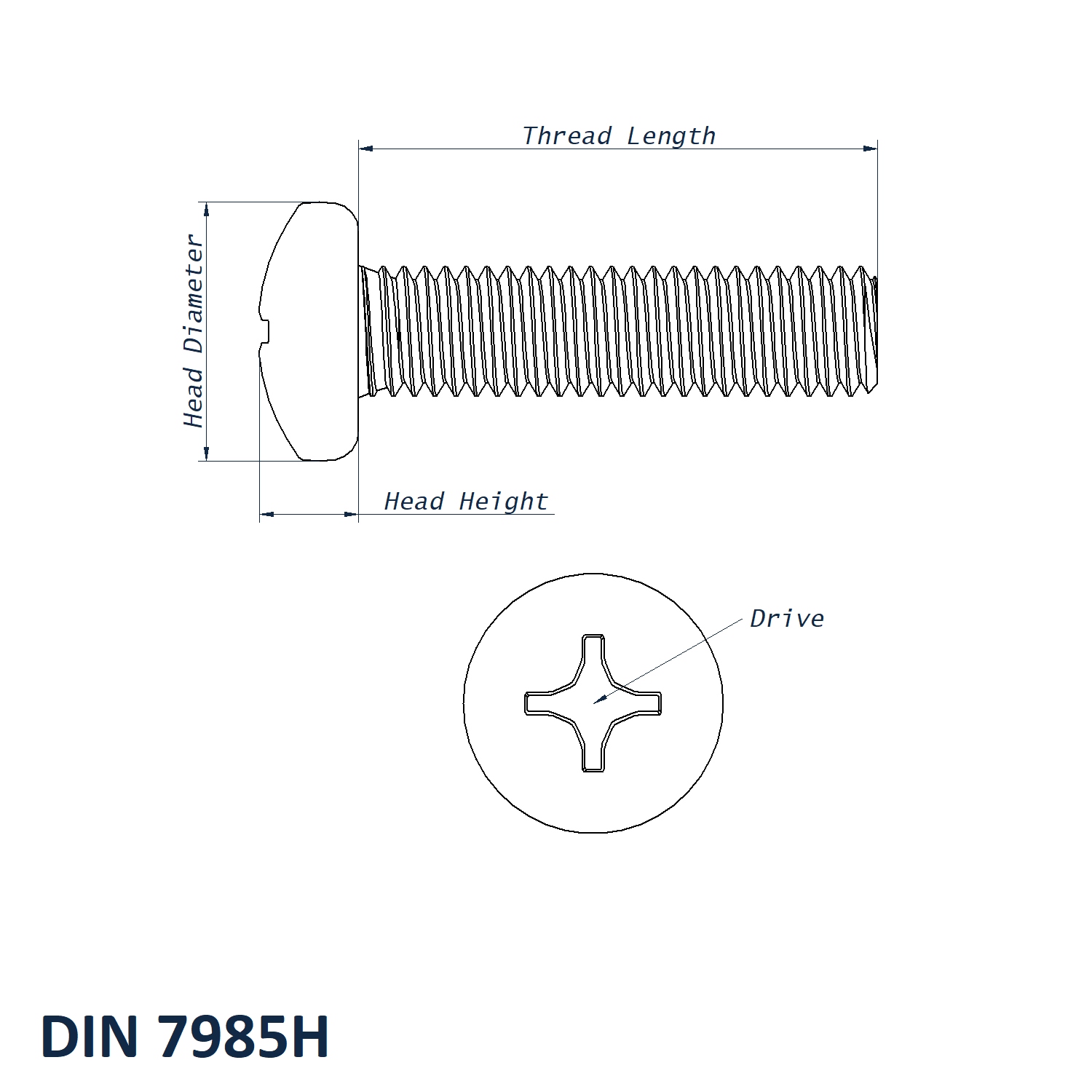

M5 x 16mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 16mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A4 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The round pan head remains accessible after fitting for adjustment or removal.
- The M5 thread and 0.80mm pitch provide a defined metric fit for compatible components.
- The DIN 7985H designation supports identification of the correct screw pattern.
- The specified Marine Grade A4 Stainless Steel can be chosen to match the assembly’s material requirements.
Explore our Phillips drive pan head screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
