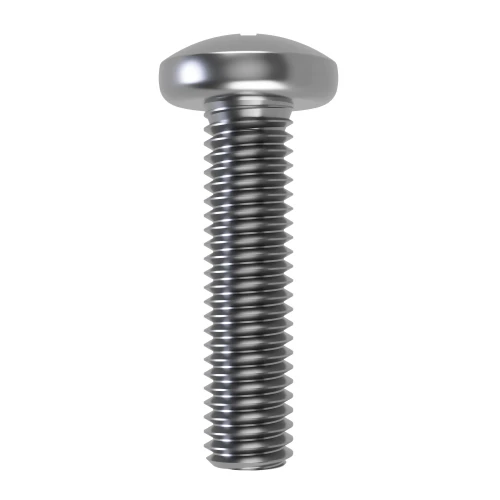

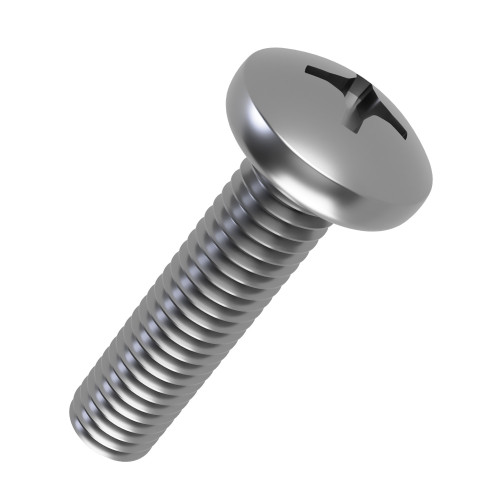

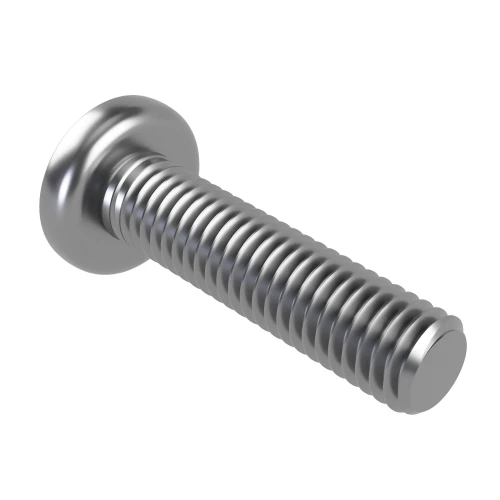

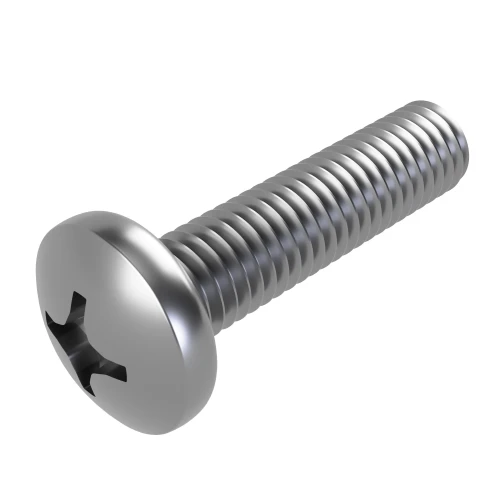

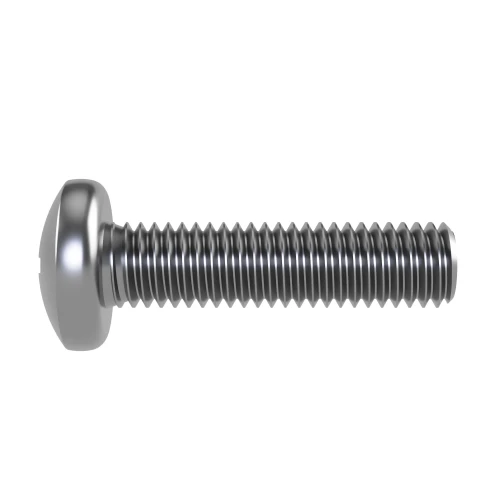

M5 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.74 | £0.89 |
| 10 - 24 | £0.60 | £0.72 |
| 25 - 49 | £0.47 | £0.57 |
| 50 - 99 | £0.36 | £0.43 |
| 100 - 499 | £0.24 | £0.29 |
| 500 - 999 | £0.17 | £0.21 |
| 1000 + | £0.12 | £0.14 |
£0.89 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 18mm |
| Material | A2 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 18mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
Designed for industrial enclosure panels, this 18mm A2 Stainless Steel Phillips pan head machine screw has a #2 cross-recessed drive and a 10mm head diameter. It is installed with a correctly sized Phillips screwdriver into a matching internal thread or through a clearance hole with a compatible nut.
What Are Phillips Pan Head Machine Screws?
These pan head screws form removable threaded joints in metal and other components with prepared metric threads. Unlike self-tapping screws they rely on a matching internal thread or nut. This product has a M5 thread and #2 Phillips head recess. For other sizes and material choices, our machine screws are listed by their individual thread and length specifications.
Common Applications
- Equipment Assembly: Making detachable connections between components with matching machine threads.
- Electrical Enclosures: Fixing covers and internal hardware with a matching metric thread.
- Maintenance Work: Replacing a worn DIN 7985H screw with an equivalent size and drive.
- Access Panels: Keeping the rounded head accessible when a panel requires routine removal.

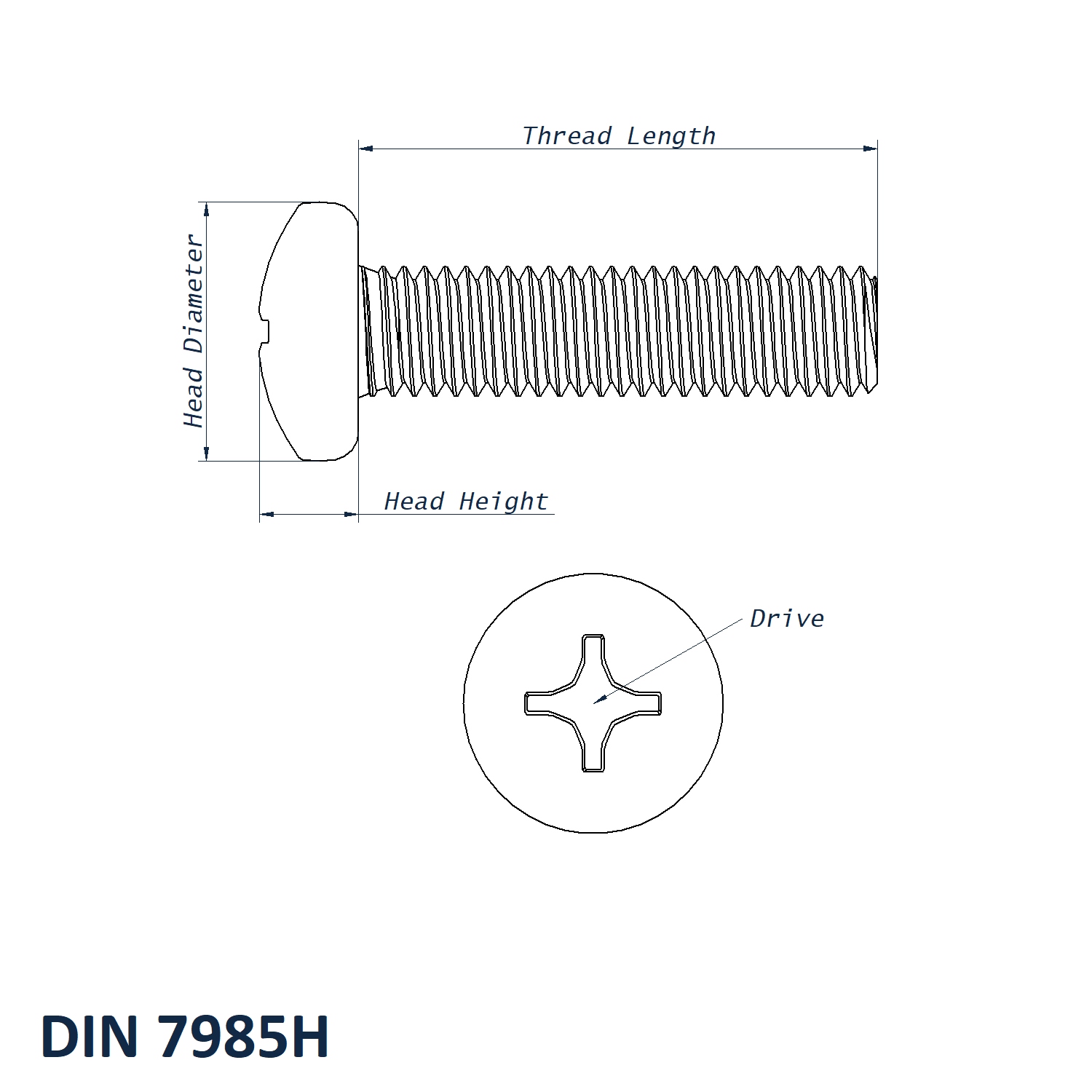

M5 x 18mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 18mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A2 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The #2 drive designation helps select the appropriate Phillips screwdriver size.
- The precise 0.80mm thread pitch helps avoid mismatching metric fasteners.
- The 10mm pan head gives a raised bearing surface rather than a flush countersunk finish.
- The 3.95mm pan head height helps assess available clearance above the fitting.
Explore our Phillips pan head screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
