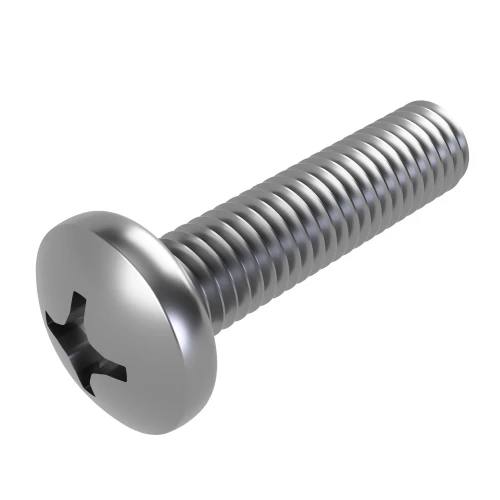

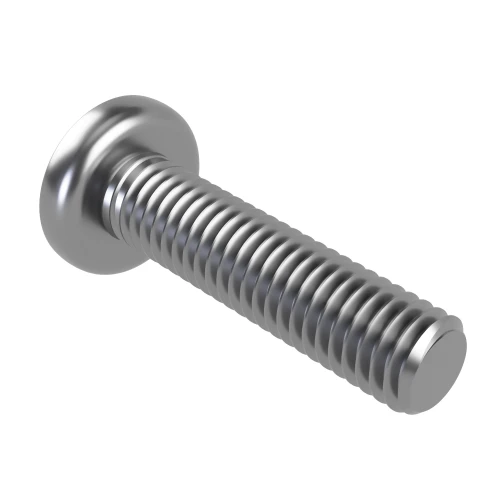

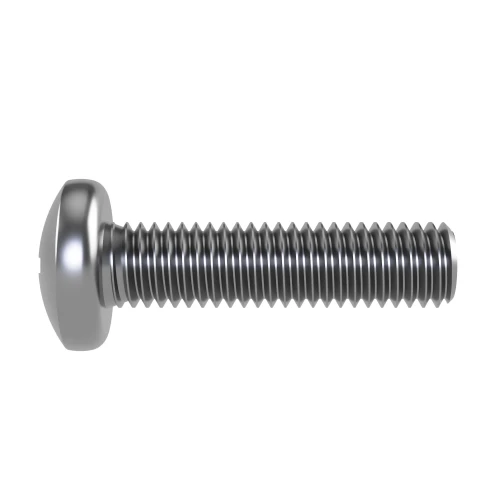

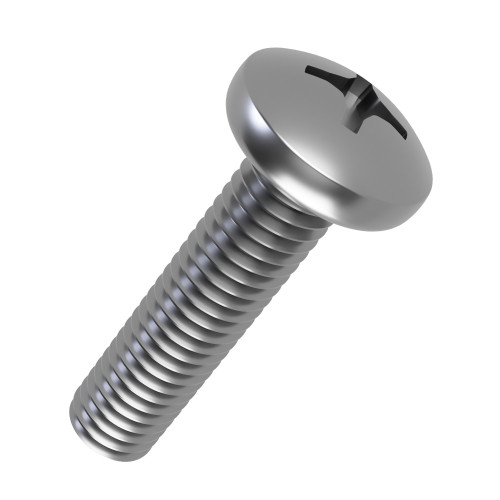

M5 x 10mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.50 | £0.60 |
| 10 - 24 | £0.40 | £0.48 |
| 25 - 49 | £0.32 | £0.38 |
| 50 - 99 | £0.24 | £0.29 |
| 100 - 499 | £0.16 | £0.19 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 + | £0.08 | £0.10 |
£0.60 / each
.png)
Product Specification
| Thread Size | M5 |
| Length | 10mm |
| Material | A2 Stainless Steel |
| Pitch | 0.80mm |
| Head Diameter | 10.0mm |
| Head Height | 3.95mm |
| Drive | #2 |
| Standard | DIN 7985H |
| Head Style | Pan Head |
Frequently Bought Together
Total Price: £0.00
M5 x 10mm Phillips Pan Head Machine Screw (DIN 7985H) | A2 Stainless Steel
Specified to DIN 7985H, this A2 Stainless Steel panhead screw measures M5 x 10mm and uses a #2 Phillips screw drive. It can secure maintenance replacement fastenings where a matching metric thread and raised pan head are required.
What Are Phillips Pan Head Machine Screws?
A Phillips head machine screw uses a cross-recessed pan head rather than a countersunk head. Its head stays proud of the fitted surface and the #2 drive must be matched to a suitable Phillips screwdriver bit. This M5 version follows DIN 7985H. For other sizes and material choices, our Phillips pan head machine screws are listed by their individual thread and length specifications.
Common Applications
- Control Panels: Fastening removable panels to enclosures with prepared M5 female threads.
- Mounting Brackets: Joining brackets and fittings using a matching M5 threaded hole or nut.
- Instrumentation: Attaching casings or fittings to suitably threaded instrument frames.
- Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.

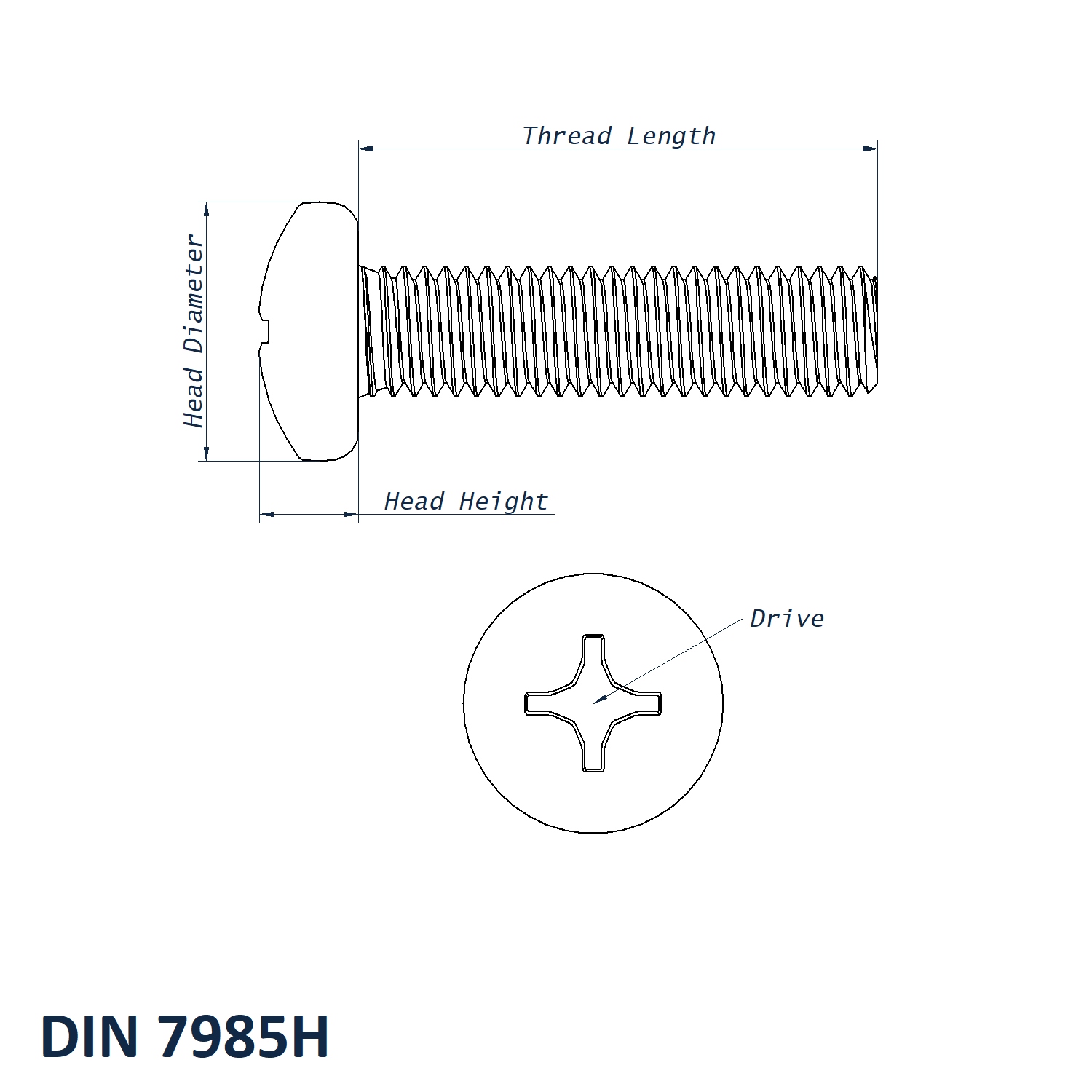

M5 x 10mm Phillips Pan Head Machine Screw Dimensions
- Thread Size: M5
- Length: 10mm
- Pitch: 0.80mm
- Head Diameter: 10.0mm
- Head Height: 3.95mm
- Drive: #2
- Material: A2 Stainless Steel
- Standard: DIN 7985H
- Head Style: Pan Head
Key Benefits
- The M5 thread and 0.80mm pitch provide a defined metric fit for compatible components.
- The DIN 7985H designation supports identification of the correct screw pattern.
- The specified A2 Stainless Steel can be chosen to match the assembly’s material requirements.
- The round pan head remains accessible after fitting for adjustment or removal.
Explore our pan head machine fasteners to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
